The UHP tool is mounted directly on the front of the robot frame with a mounting bracket. The blastcan is a closed loop system with a rotary UHP nozzle arrangement inside. A vacuum line is connected to collect the water and debris accumulating inside the can. The connected hoses are secured by clamps on the top of the robot frame.

Fareskilt_2

The operation of the UHP tool requires an UHP pump and a vacuum unit connected!


Characteristics


Description

Type Number

:

122748

Frame material

:

Aluminium / Stainless Steel/ Rubber

Weight

:

25 Kg

Tool diameter (active cleaning area)

:

400 mm

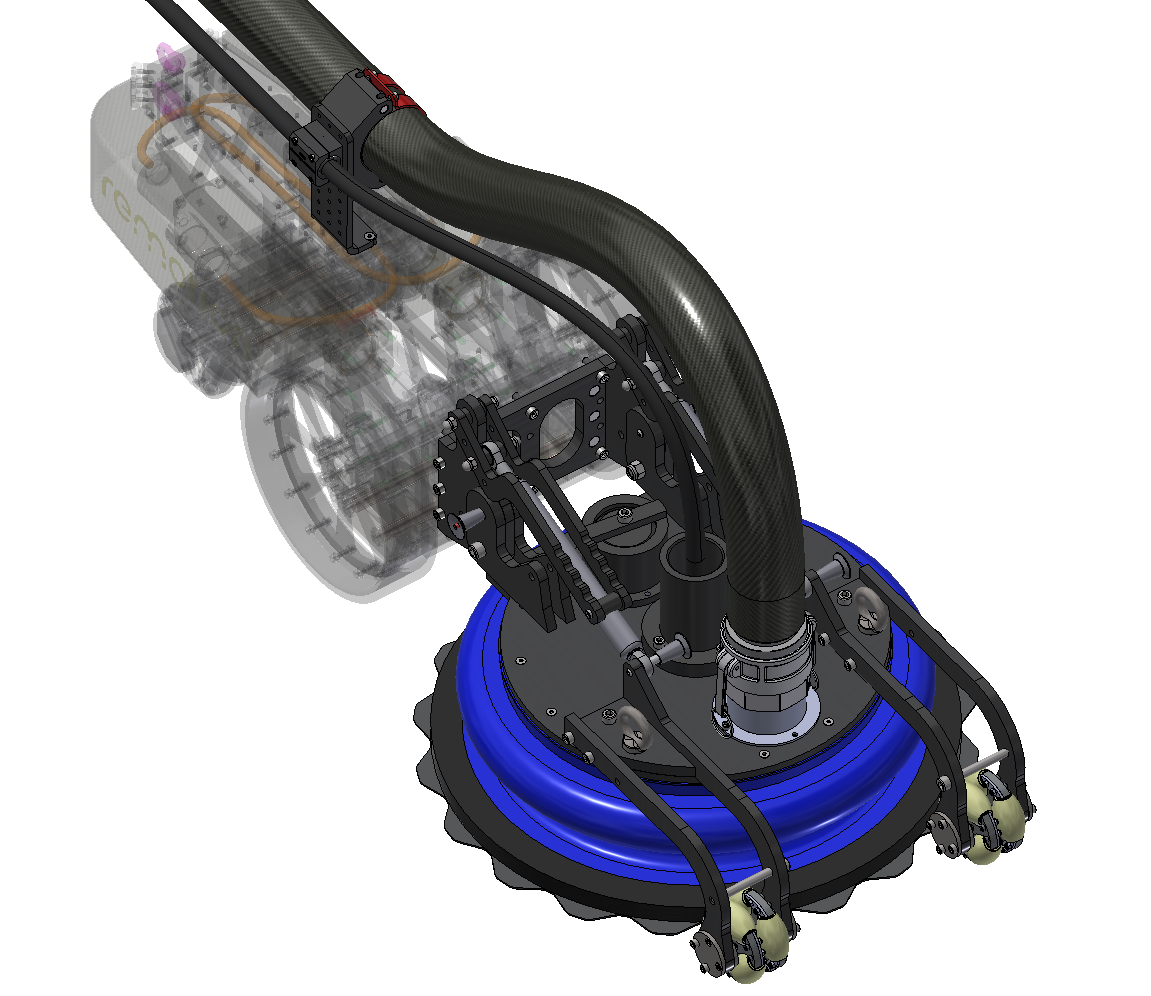

Figure 10: Illustrated view of Proteus Safe w/UHP Tool
