The installation of the Spray Painting Tool requires an installed Linear Tool on the robot!


#

Description

Prepare the following tools and parts:

x1

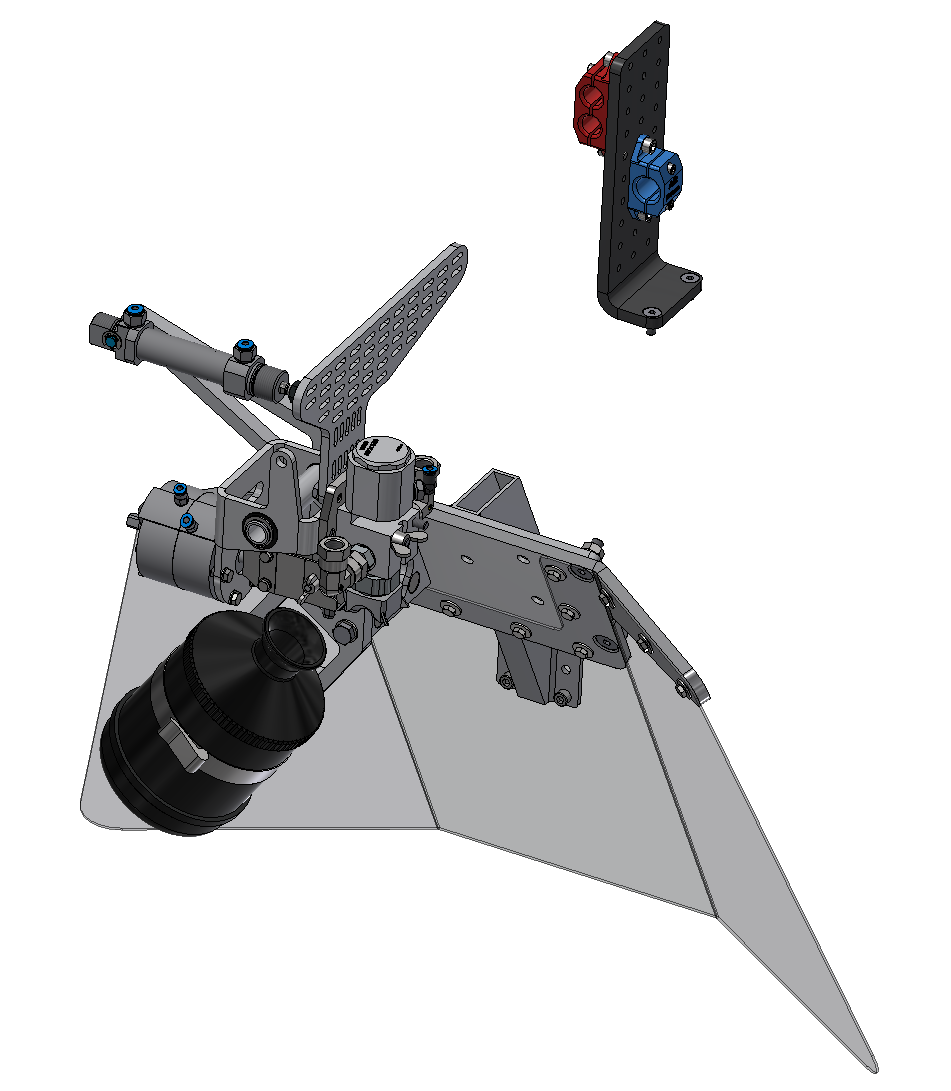

Spray Painting Tool

Et bilde som inneholder skrue, metallvarer, Skruer og muttere til hjemmet, festeanordning??Automatisk generert beskrivelse

X2

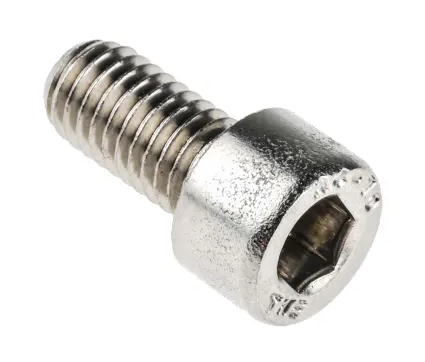

M5 HEX socket head bolts (DIN912) 12mm

X4

M6 HEX socket head bolts (DIN912) 12mm



Countersunk screw material:Stainless steel A2 - DIN 7991

X2

M6 Countersank Hex socket screw (DIN7991) 16mm





Et bilde som inneholder verktøy, skrunøkkel??Automatisk generert beskrivelse

x1

HEX key size 5 & 4

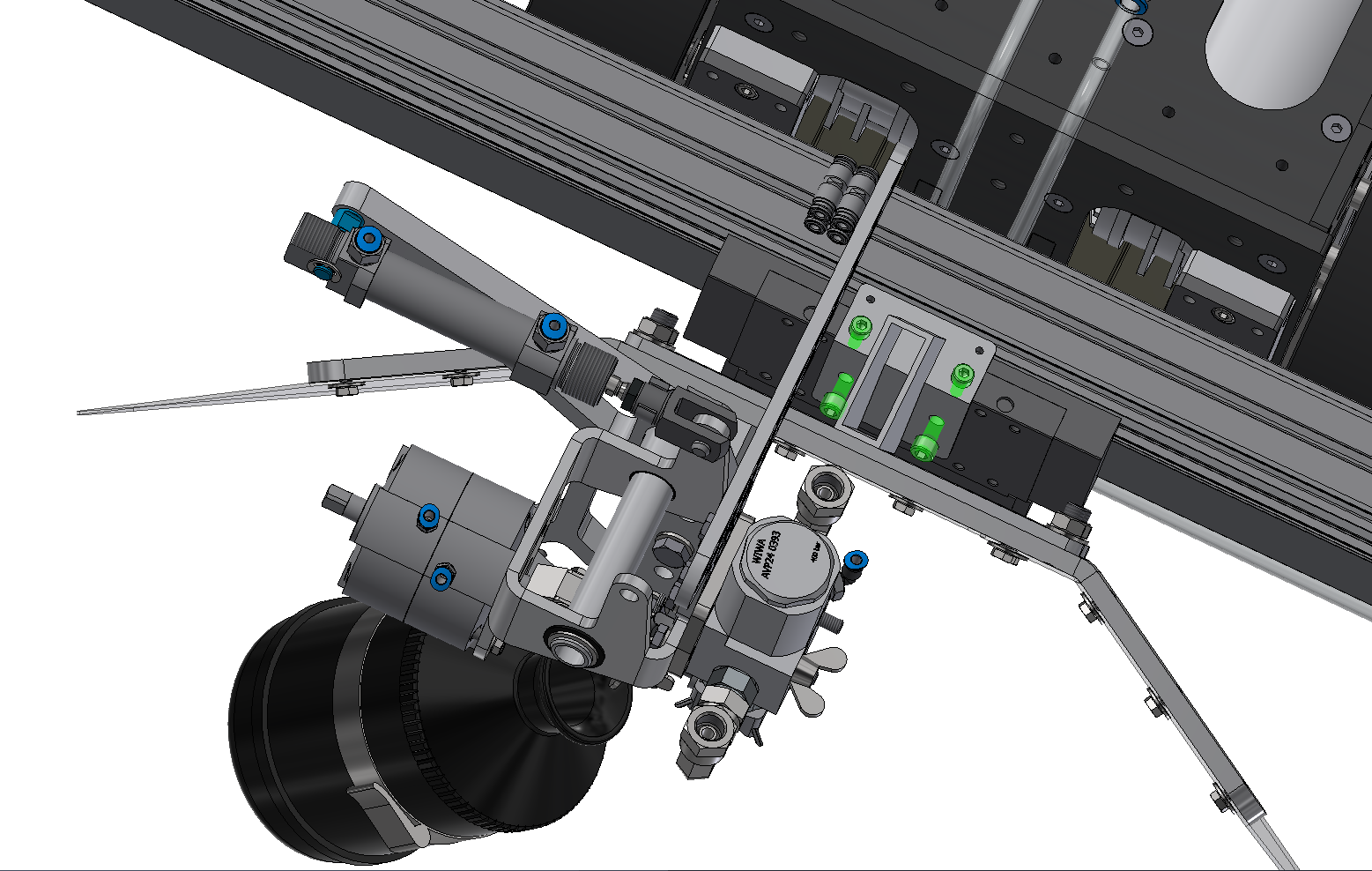

Secure the tool by the 2x M5 and the 2x M6 hex screws.

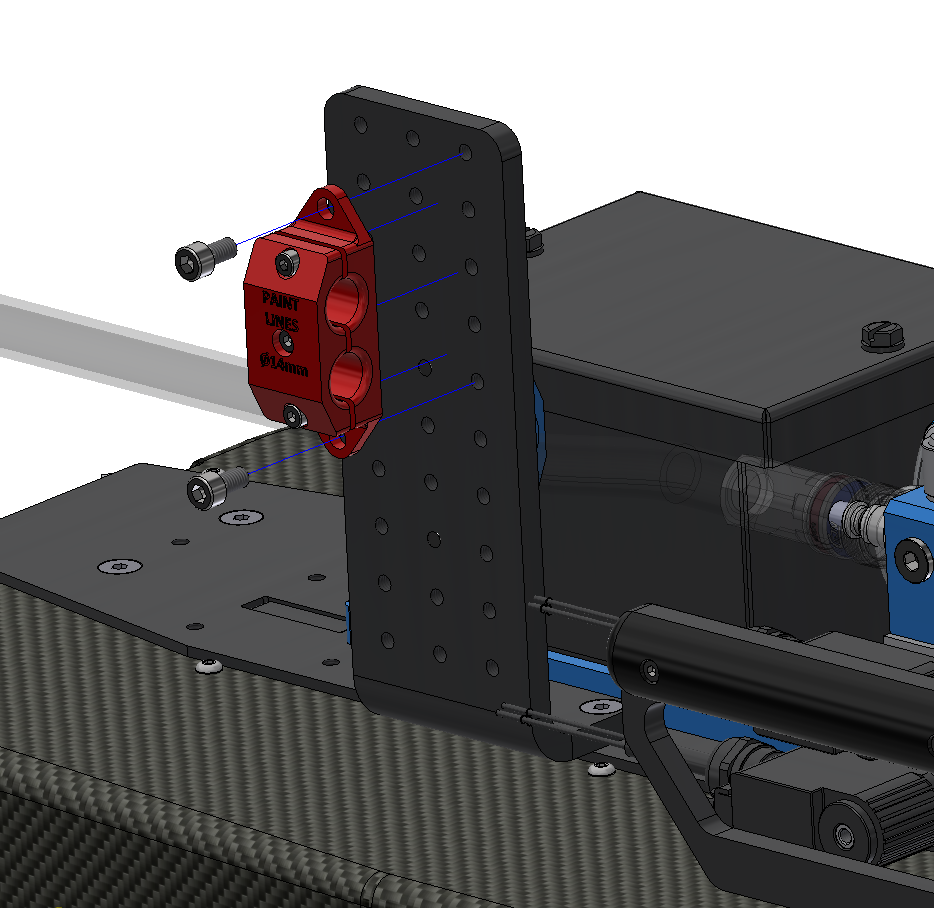

Install the paint hose clamps by the M6 Hex socket screws.

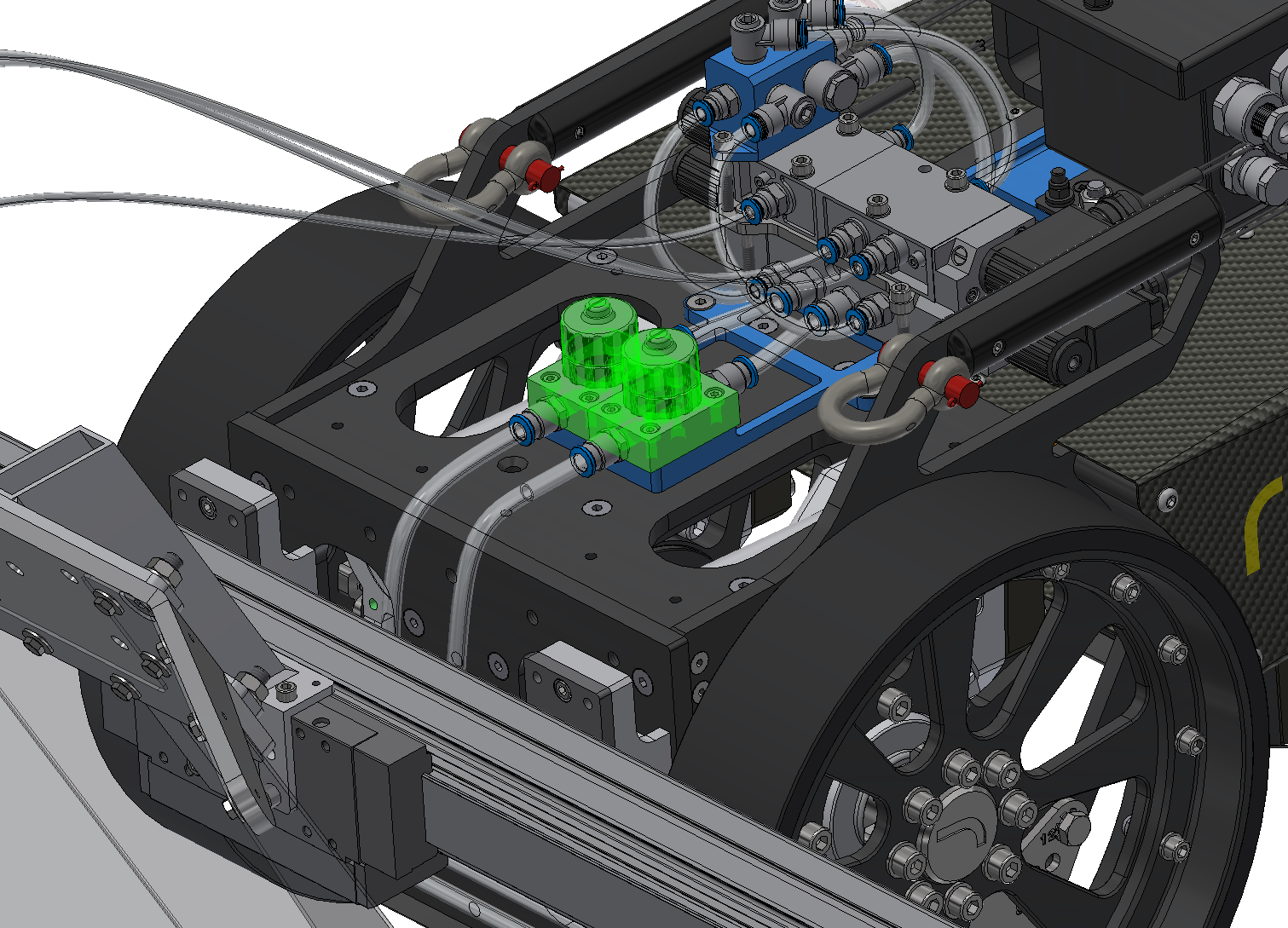

Connect the pneumatic lines.

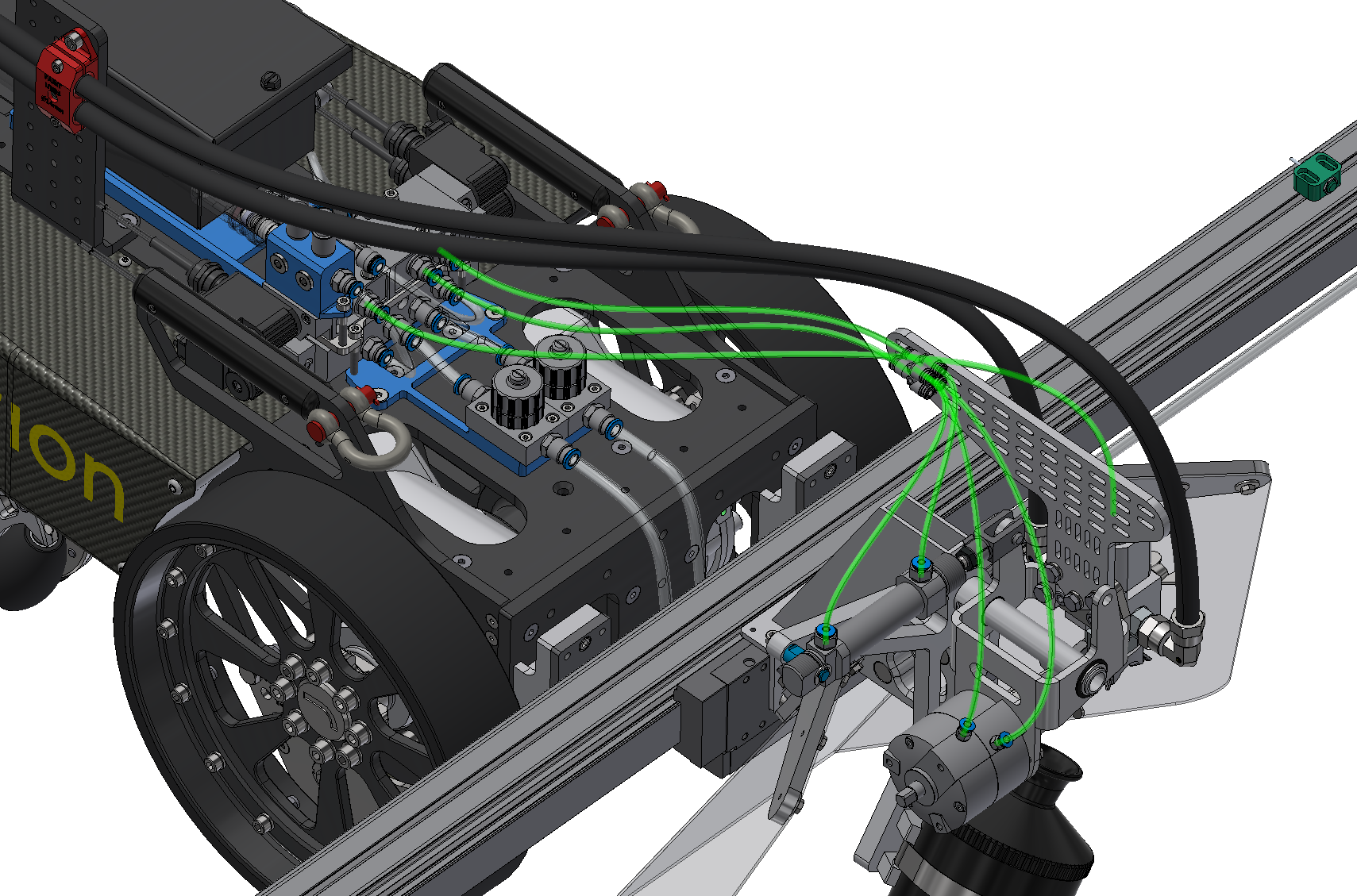

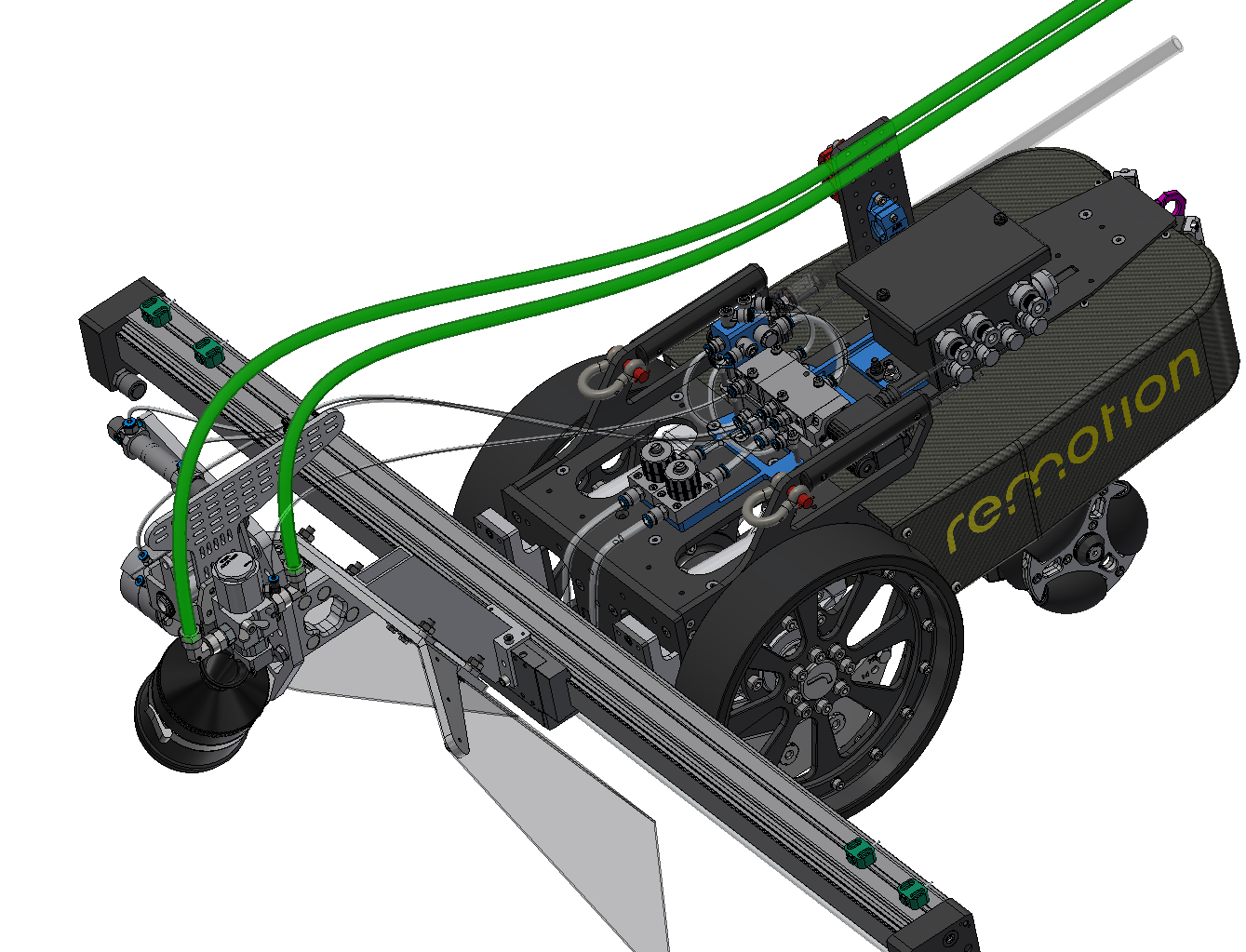

Connect the paint hoses to the gun ant secure them in the hose clamp.

Test the pneumatic functions and calibrate the required speed of the linear tool with the One-way flow control valves.
