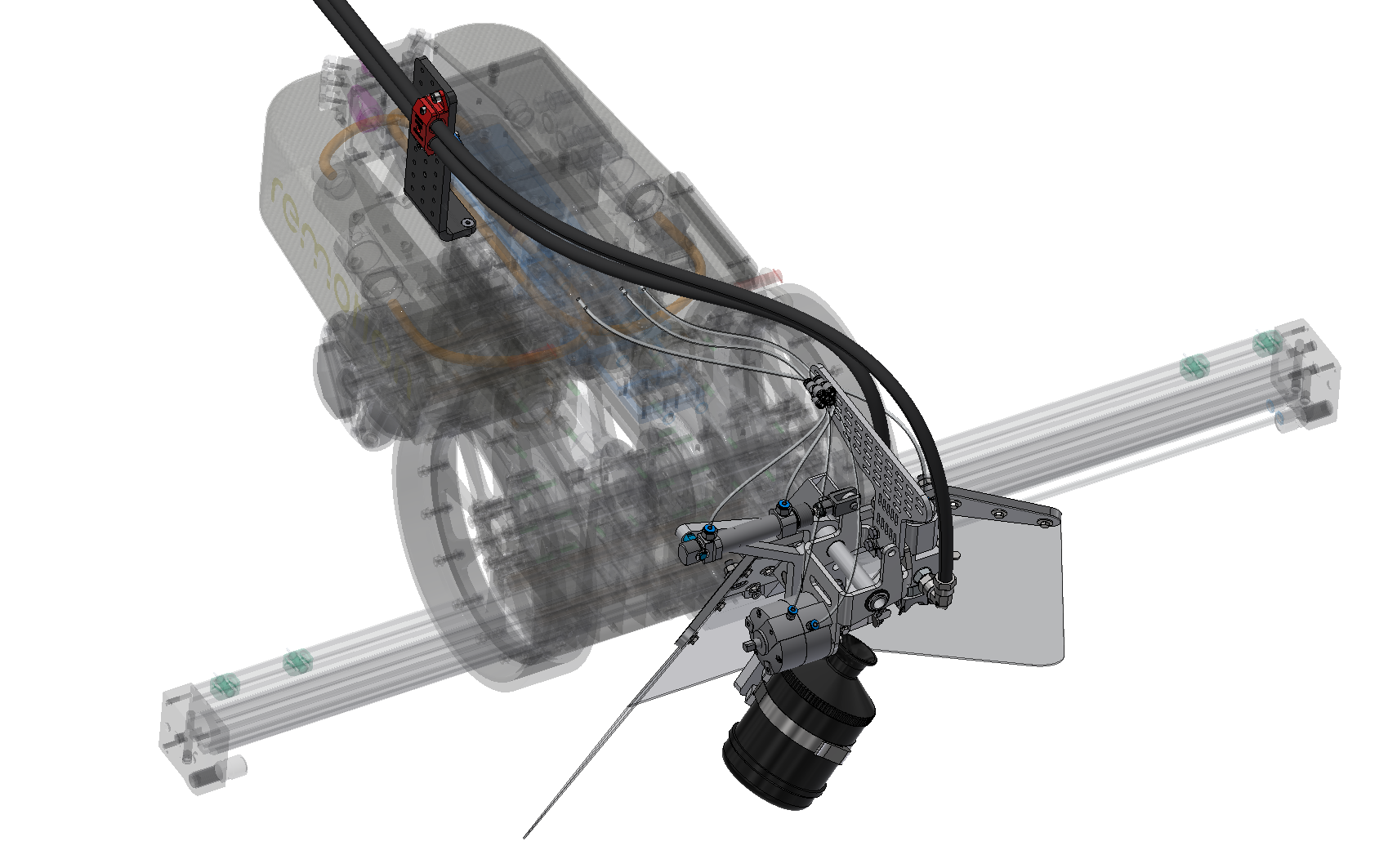

The Spray Painting Tool is an airless spray painting gun mounted onto the linear tool. The gun is remotely operated by a pneumatic pilot valve connected to the pneumatic control pack of the linear tool.

The painting tool has a gun cleaning & unclogging feature. The nozzle of the gun can be rotated by a pneumatic rotary actuator for cleaning. During cleaning a pneumatic actuator tilt the gun towards a dump container to collect the thinner and paint used during the cleaning & unclogging process.
The pneumatic actuators are connected to the pneumatic control pack of the linear tool.

The robot is protected from the overspray by a replaceable transparent shield.

Characteristics


Description

Type Number

:

122623

Frame material

:

Aluminium

Spray Gun

:

WIWA AVP24

Actuators

:

1 of Festo DSNU-20

1 of Festo DRVS-25

Weight

:

6kg


Fareskilt_2

The operation of the Spray Painting  tool requires an airless spray pump!
