Fareskilt_2

The installation of the Vacuum Sandblasting Tool requires an installed Linear Tool on the robot!




#

Description

Prepare the following tools and parts:

x1

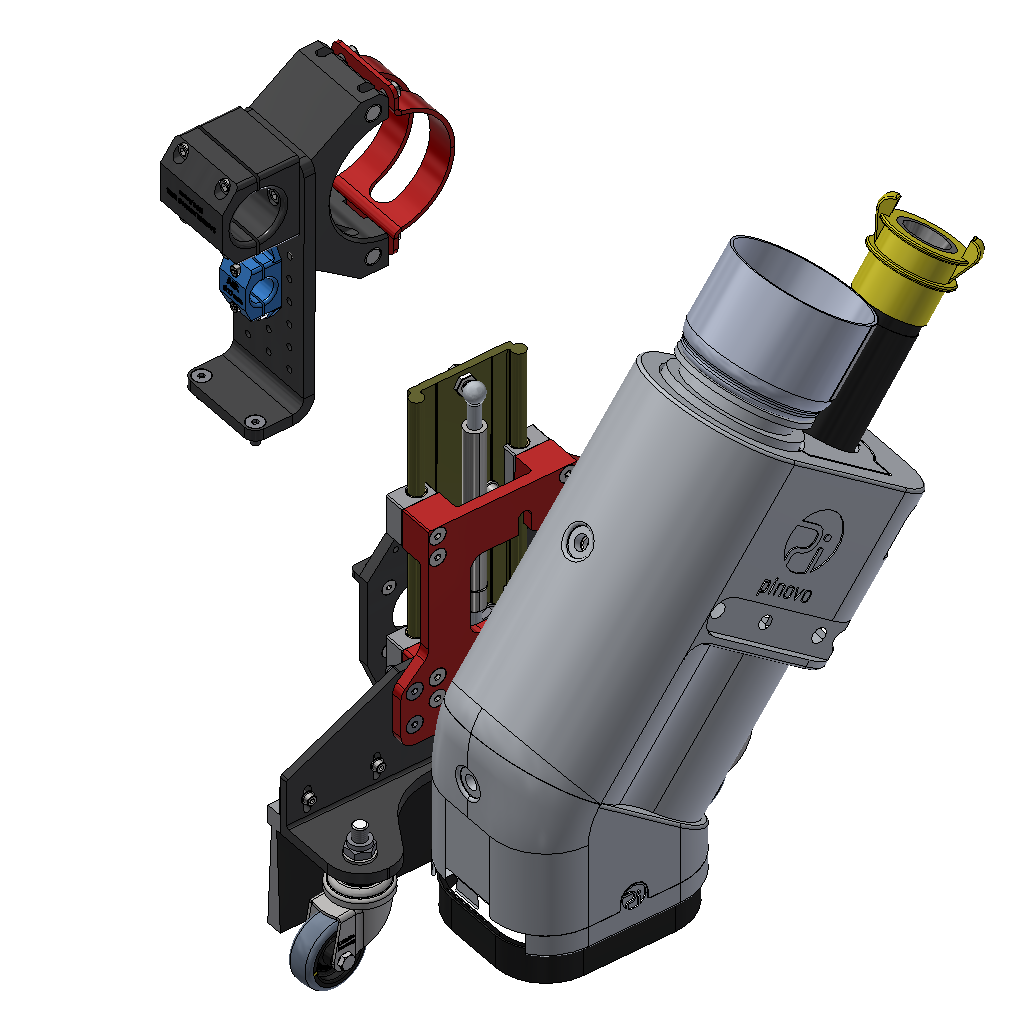

Sandblasting Tool

Et bilde som inneholder skrue, metallvarer, Skruer og muttere til hjemmet, festeanordning??Automatisk generert beskrivelse

X2

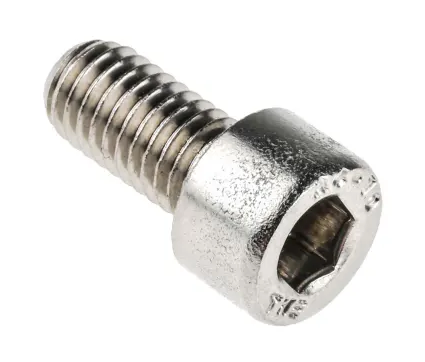

M5 HEX socket head bolts (DIN912) 10mm

X6

M6 HEX socket head bolts (DIN912) 16mm



Countersunk screw material:Stainless steel A2 - DIN 7991

X4

M5 Countersank Hex socket screw (DIN7991) 16mm

X2

M6 Countersank Hex socket screw (DIN7991) 16mm

X3

M8 Countersank Hex socket screw (DIN7991) 30mm

Et bilde som inneholder verktøy, skrunøkkel??Automatisk generert beskrivelse

x1

HEX key size 3 & 4






Mount the suspension unit onto the linear tool by the 4 M5 Ctsk. Hex socket screws from the front and the 2 M5 Hex socket screws from the top.

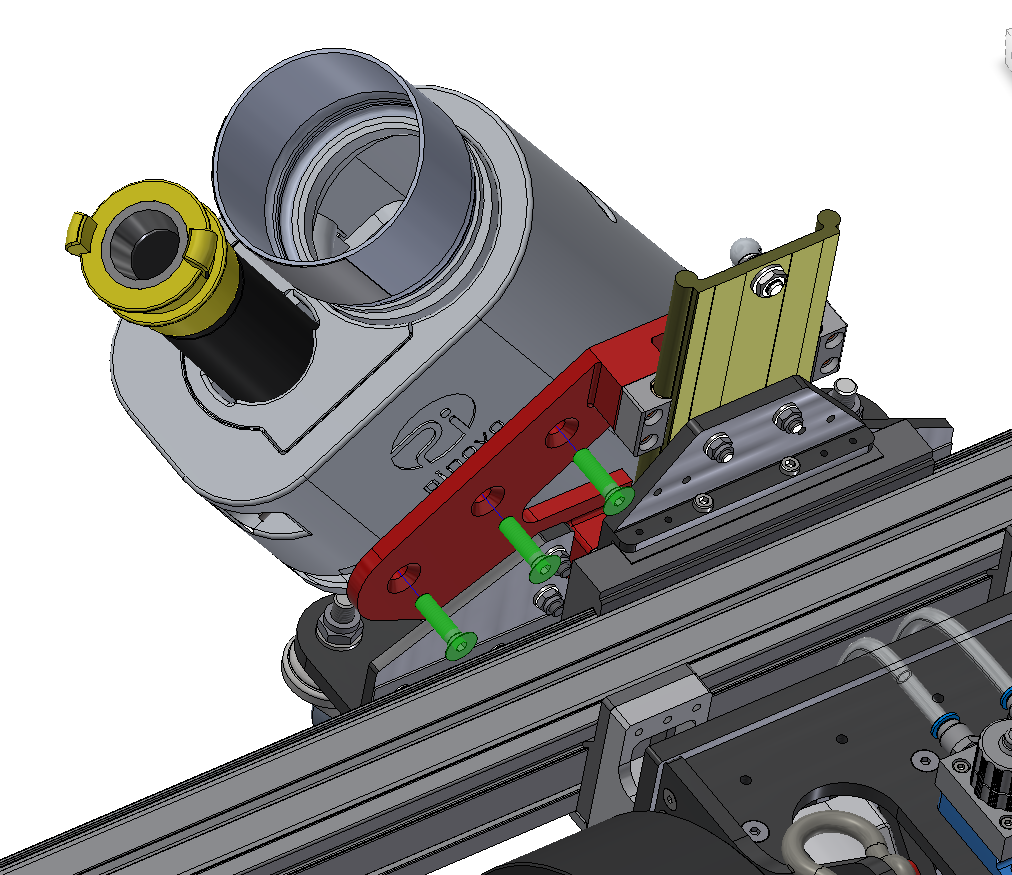

Mount the Pinovo Head onto the suspension unit by the 3 M8 Ctsk. Hex socket screws.

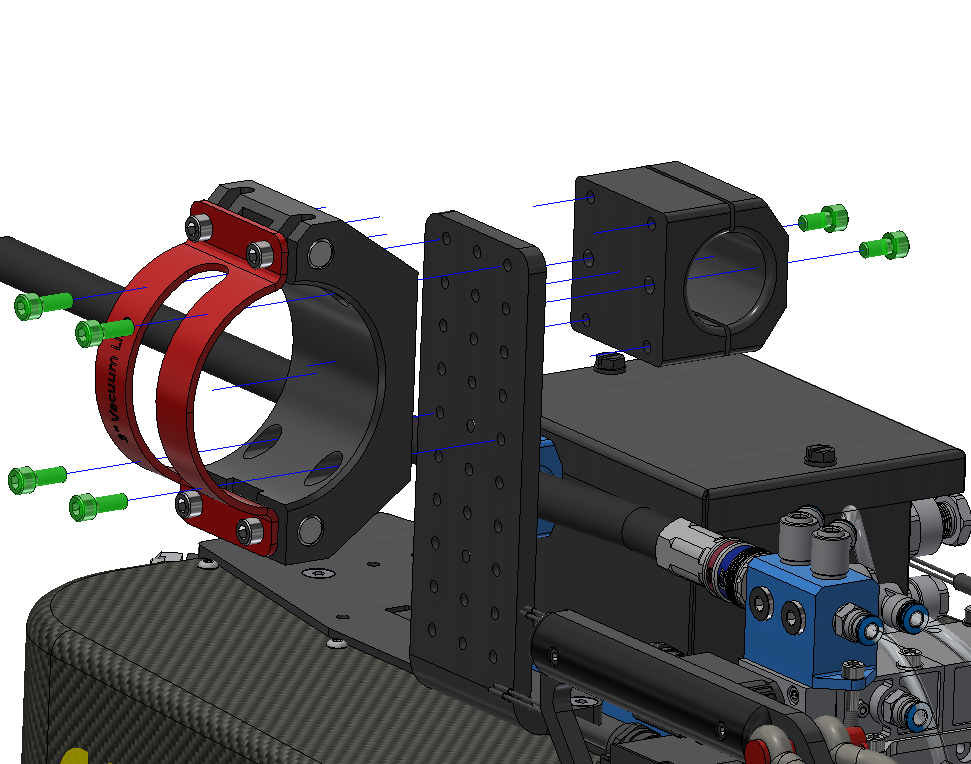

Install the vacuum and sandblasting hose clamps by the M6 Hex socket screws.

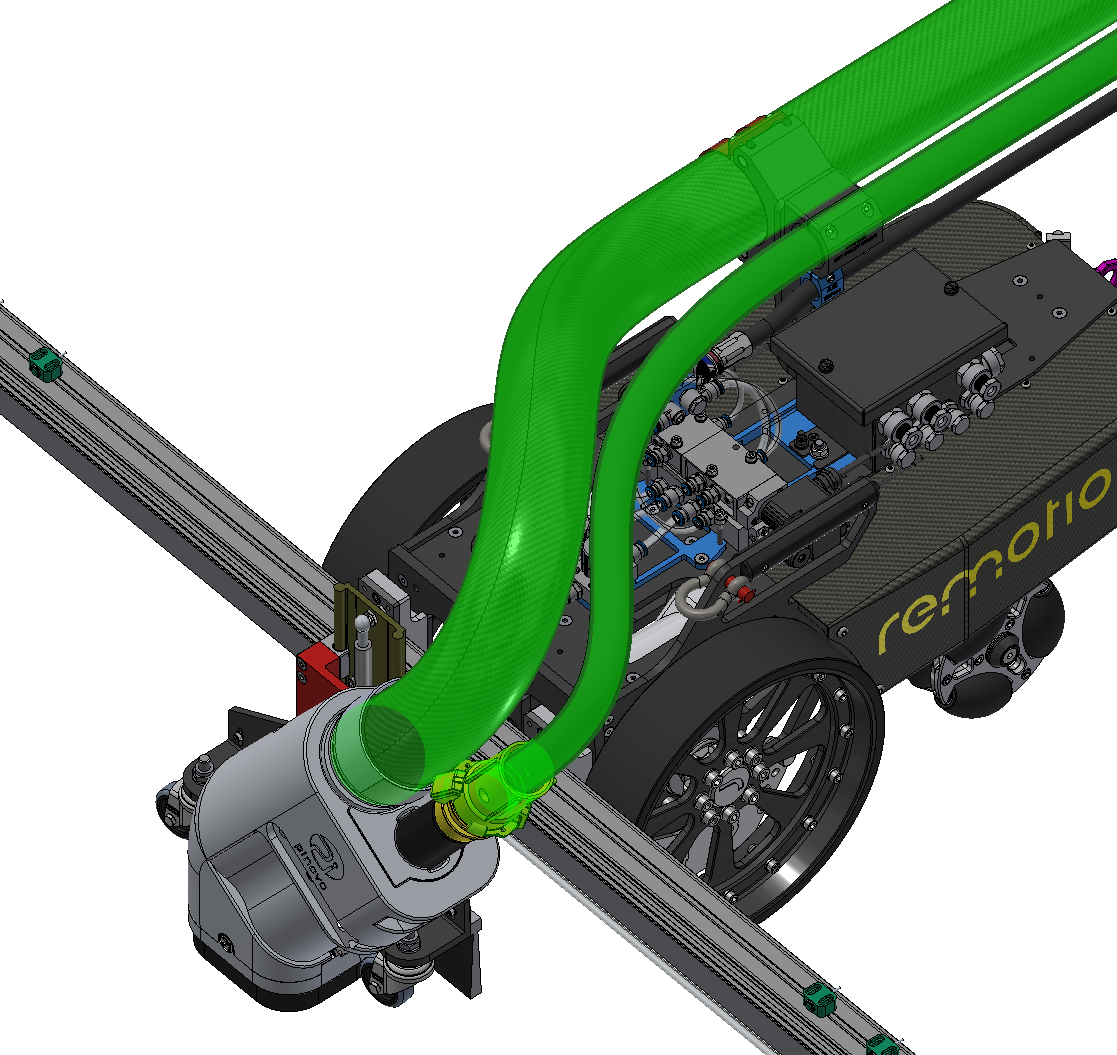

Attach the vacuum and sandblasting hoses to the Pinovo head and secure them in the hose clamps.

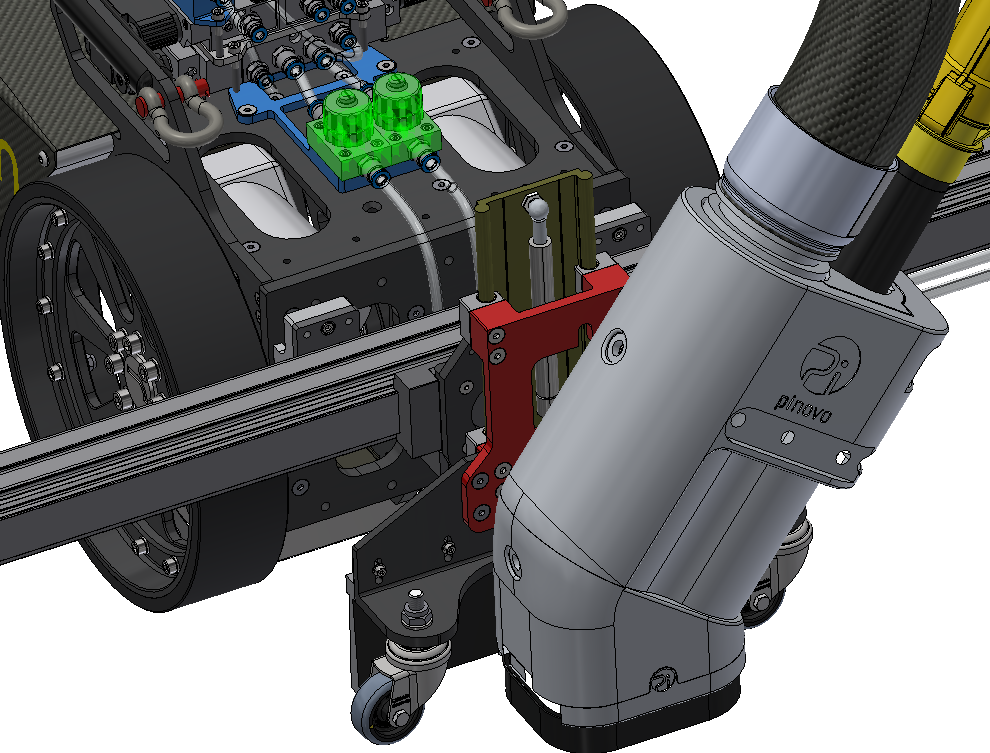

Test the pneumatic functions and calibrate the required speed of the linear tool with the One-way flow control valves.
