The robot onboard connector sockets connects the power and network distribution for Proteus Safe.


Characteristics


Description

Connector Socket

:

Hawke InstrumEx N/CR-XE-PS-XX-SA

Servomotor cable

:

ÖLFLEX® SERVO FD 7DSL
4 G 0,75 + (2 x 0,34) + (2 x 26AWG)

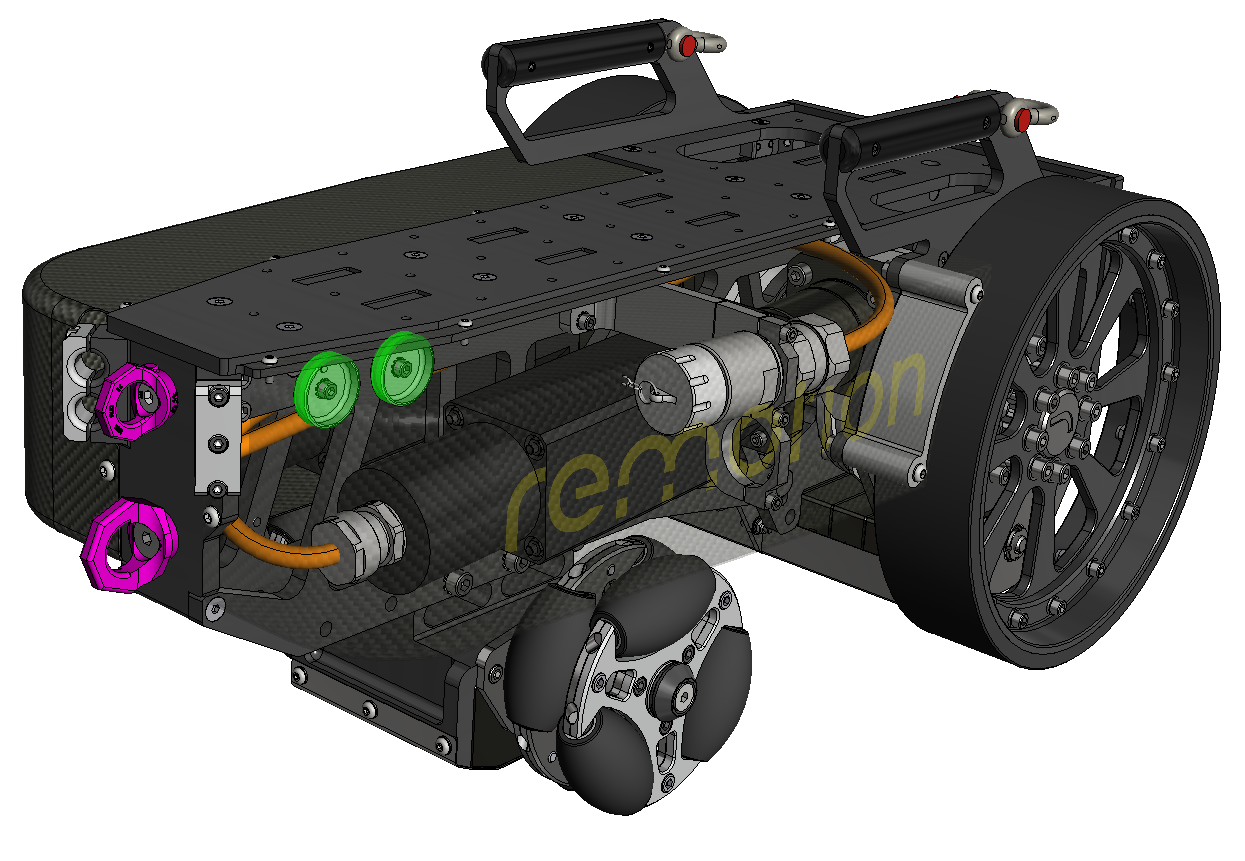

Figure 7: Socket locations below the cover

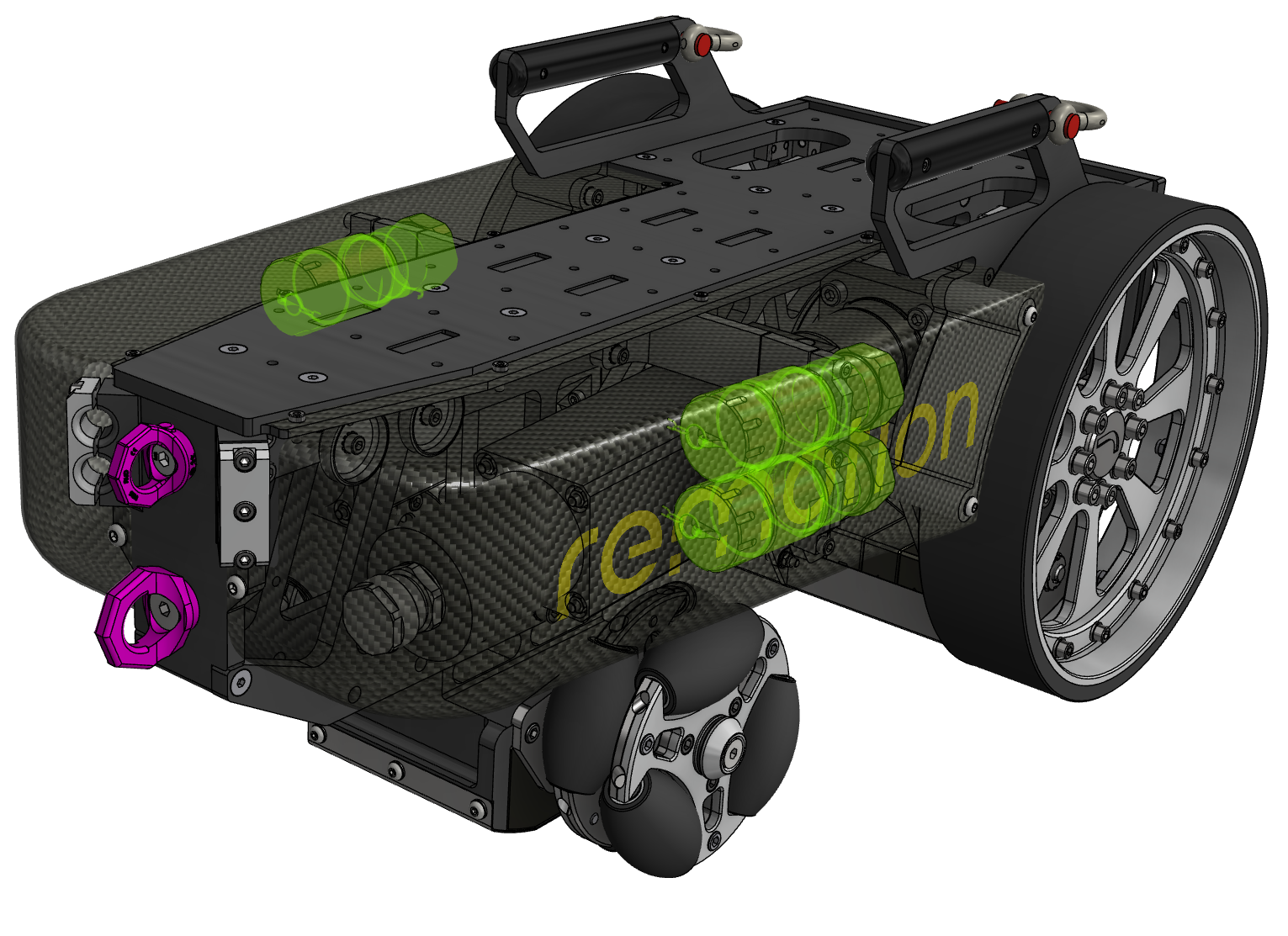

Figure 8: Blind Plug Holder location


Fareskilt_2

CAUTION:

  • When ports are not connected, blind plugs shall always be installed.
  • When connector are in use, keep the blind plugs screwed onto the dedicated plug storage behind the motor on both sides of the robot.
