To connect the motor/network connectors and cables.


  1. Remove the motor cover
  2. Plug the connector into the socket
  3. Secure the cable with the cable clamp in the rear
  4. Secure the blind plugs on their designated storage
  5. Install the cover.

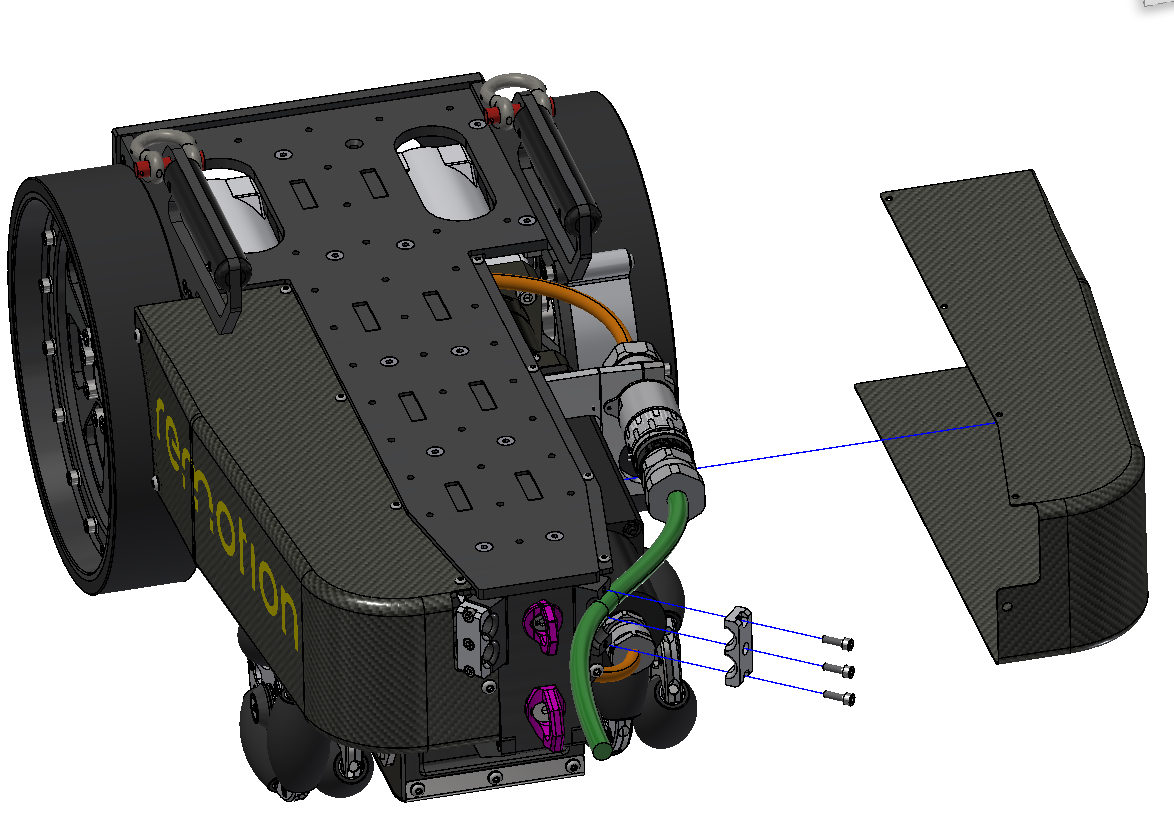

Fig. Cable Connection

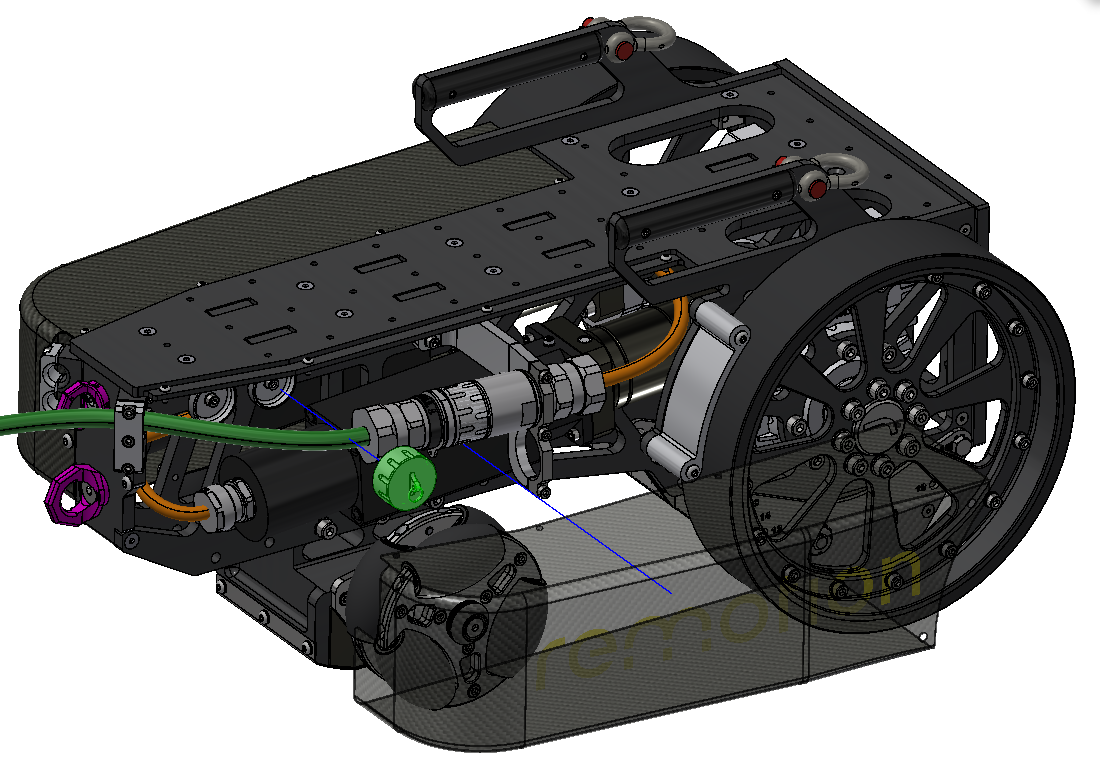

Fig. Blind Plug Storage
