The Proteus Safe robots are equipped with powerful magnets that maintains the robots attached to the magnetic surface it works on. These magnets are on the underside of the robot and can be adjusted to fit the shape of the surface it operates on.


Main Magnets


The main magnets are placed between the main wheels in the front of the robot.


Characteristics


Description

Type

:

N52

Dimensions [LxWxH], mm

:

275 x 206 x 86

Weight

:

14 kg

Surface treatment

:

Epoxy coating 0 – 15 µm

Mounting Plates

:

AISI 316

Protector Plate

:

AISI 316

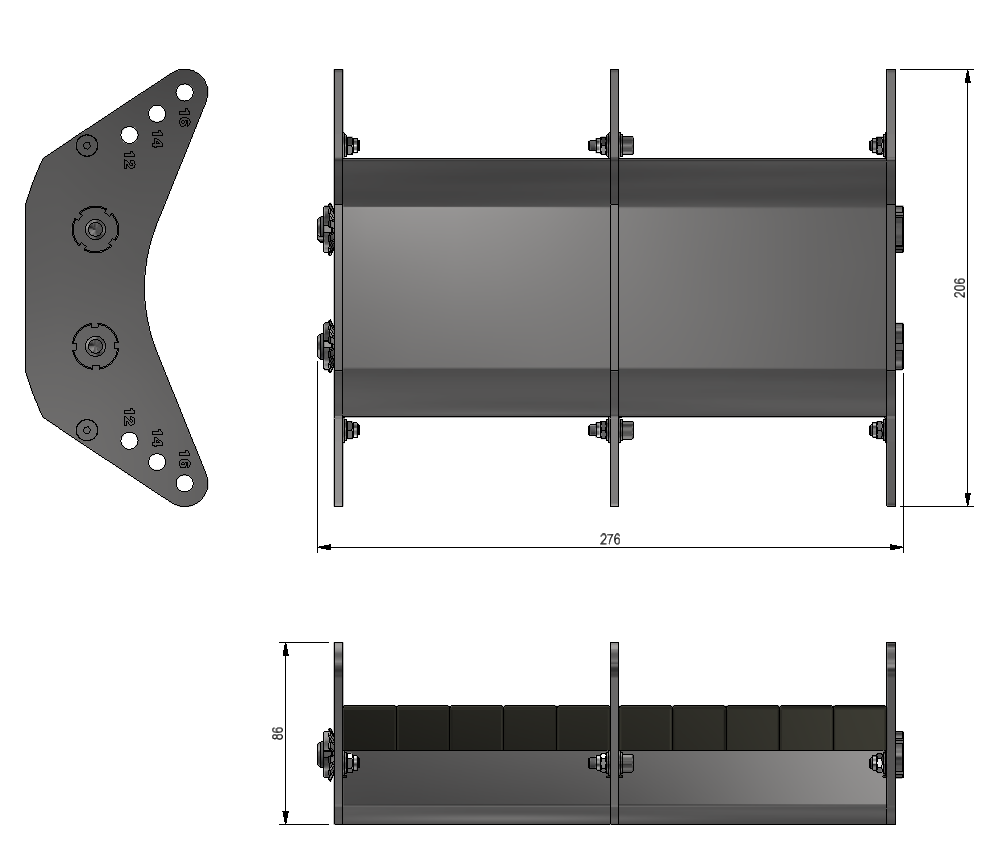

Figure 14: Main Magnet
