Secondary Magnet
The secondary magnet is placed between the rear omni wheels of the robot.
|
Characteristics |
|
Description |
|
Type |
: |
N52 |
|
Dimensions [LxWxH], mm |
: |
145 x 151 x 110 |
|
Weight |
: |
12 kg |
|
Surface treatment |
: |
Epoxy coating 0 – 15 µm |
|
Mounting Bracket |
: |
Aluminium, Hard anodized |
|
Protector Plate |
: |
AISI 316 |
|
|
|

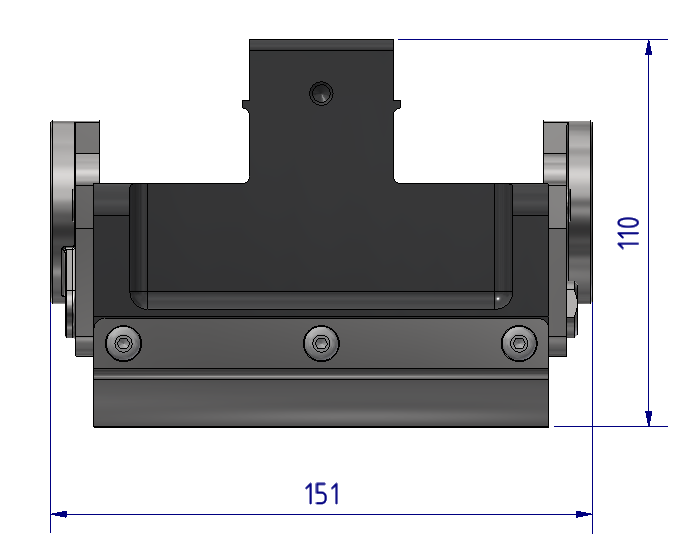

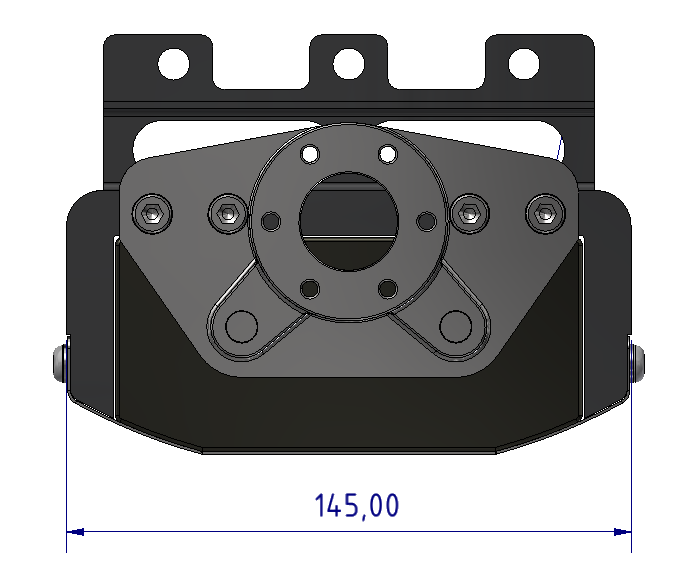

Figure 15: Secondary Magnet
|
|
CAUTION: During manual handling, the operator must never place their hands or other body parts between the underside of the robot and a magnetic surface. |
|
|
CAUTION: Use non-magnetic tools like bronze or stainless steel when working with the magnet to avoid entanglement. Working area shall be cleaned for other ferro metallic parts. Use of PPE Is mandatory to prevent personal injuries. |
