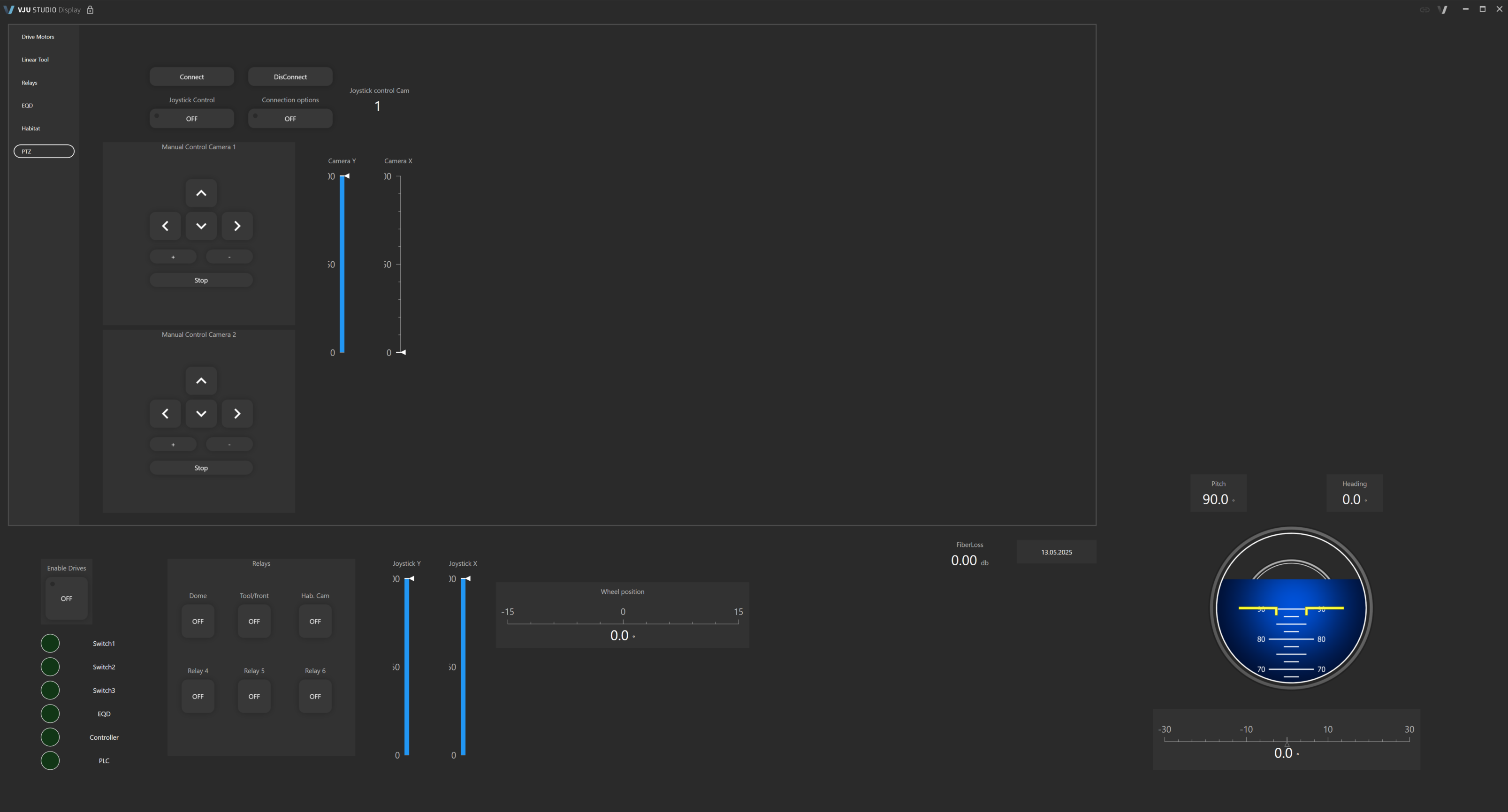

The PTZ view gives the operator control over the different cameras.



  • Connect
    Connect to the two cameras using this button. It will be connected with the active settings listed using the connection option.
  • DisConnect
    Disconnect cameras.
  • Joystick Control
    This button sets the joystick as the main controller for the camera.
  • Connection options

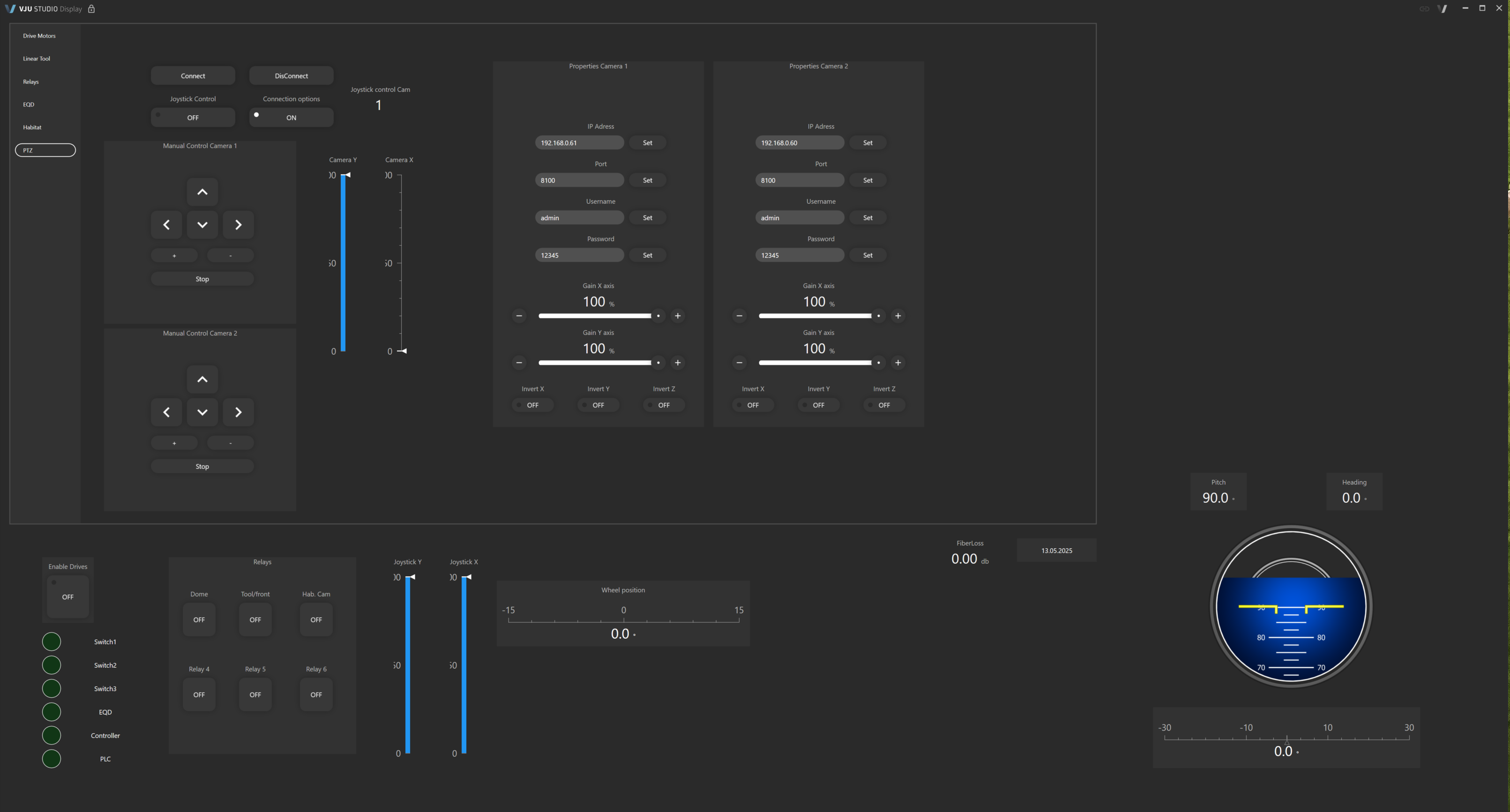

    • Clicking this button will open the Connection options view, as seen below.
  • Joystick control Cam
    Choose which camera to control using this button.




Properties Camera

  • IP Adress
    The IP address of the camera.
  • Port
    The port the camera communication uses.
  • Username
    The username the operator is logged in with.
  • Password
    The password the operator is using for this session.
  • Gain X axis
    Joystick setting. 50% is recommended value.
  • Gain Y axis
    Joystick setting. 50% is recommended value.
  • Invert X
    Invert joystick direction
  • Invert Y
    Invert joystick direction
  • Invert Z
    Invert joystick direction

Practical tips:

  • Make sure you record everything during the critical phase of the operation (grinding, setting habitat, inspection after welding etc.). It is better to record too much than too little.
  • Screenshots are very useful when the time comes for reporting and documentation of the finished operation. It is easier to find a screenshot in a folder than viewing hours of video to make the same screengrab.
  • Stop the recording before the critical phase of the operation and start it again. This will save the current video and start a new one, which make it easier to find the actual video clip you need, and you save time editing the video.
