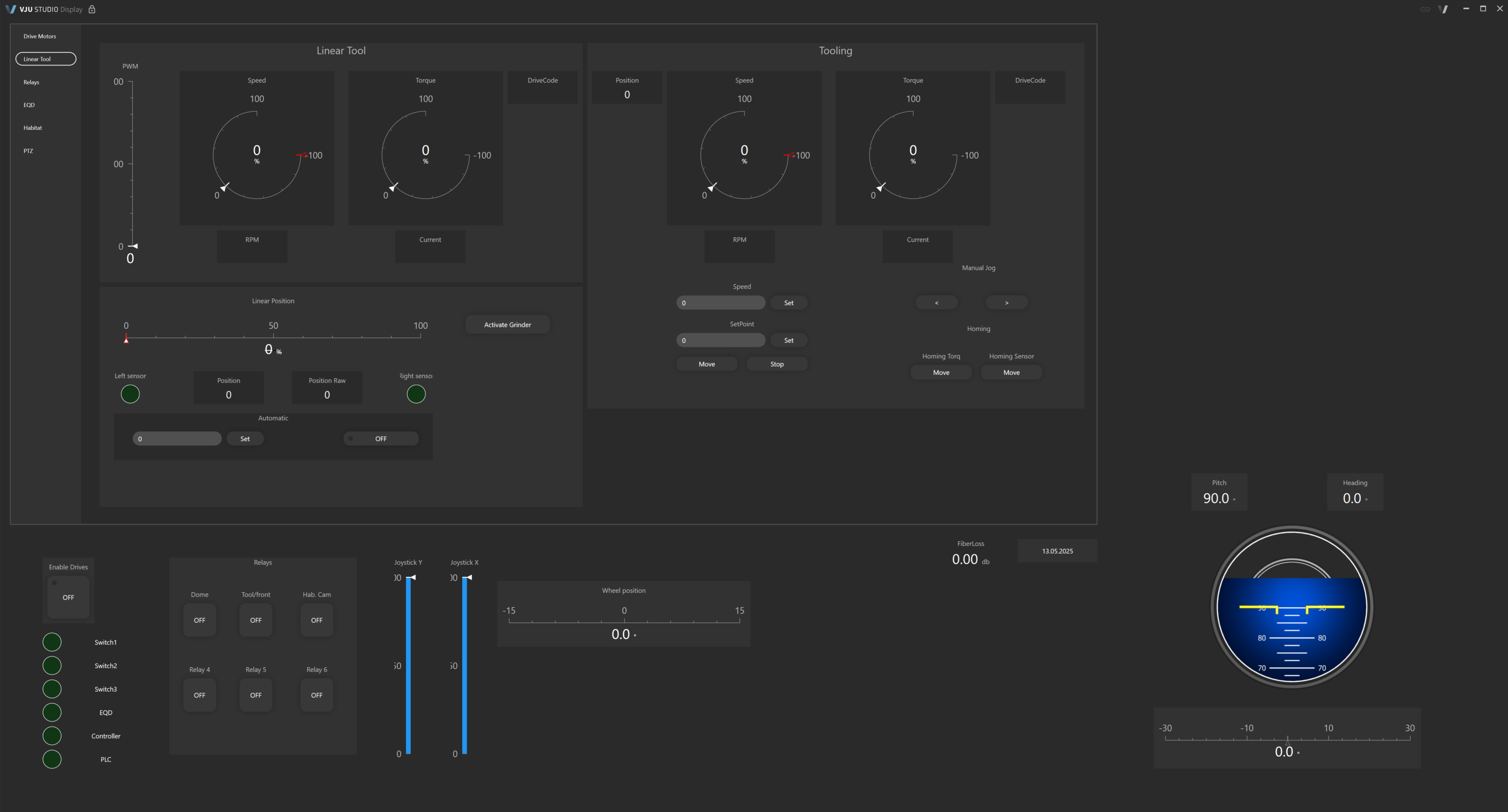

The linear tool is controlled from the Linear Tool screen.



Linear Tool


  • PWM (Pulse Width Modulation)
    The desired speed of the motor, where 500 is zero.
  • Speed
    The speedometer shows the speed the motor for the Linear Tool operates with.
    • RPM
      Revolutions per minute for the Linear Tool motor.
  • Torque
    The speedometer shows the torque force the motor for the Linear Tool operates with.
    • Current
      How much current is drawn by the motor.
  • DriveCode
    • Codes informing about status


Linear Position
The slider illustrates where the tool is situated on the linear tool track.

  • Activate Grinder
    This button will activate the Grinder carried by the linear tool.
  • Left sensor
    An active green light indicates that the tool is registered on the far left endstop.
  • Right sensor
    An active green light indicates that the tool is registered on the far right endstop.
  • Position
    Position in percentage for where the tool is situated on the linear tool.
  • Position Raw
    The actual position.
  • Automatic
    This field enables setting an automatic speed of the tool connected to the linear tool
    • Set
    • OFF
