Description

Prepare the following tools and parts:

x1

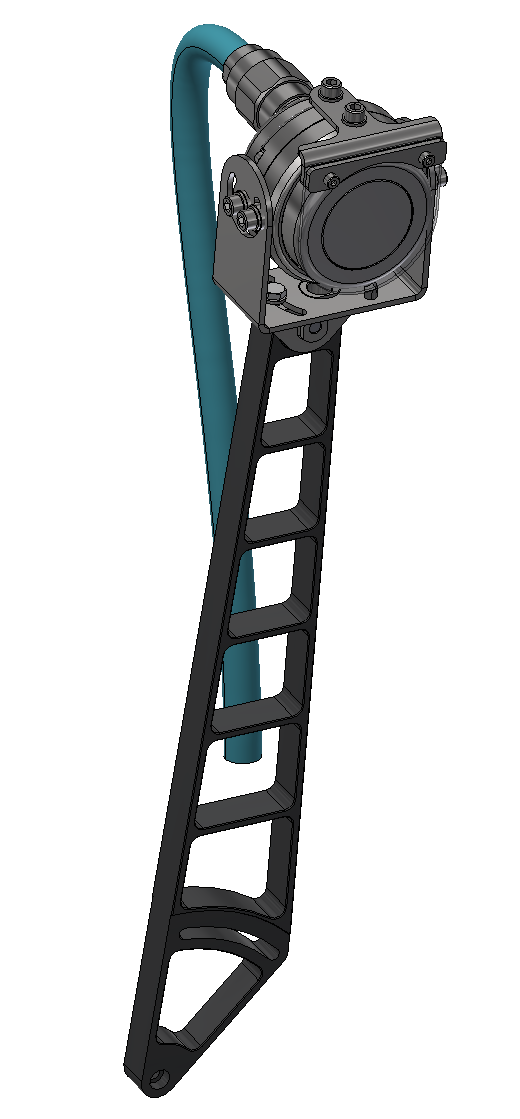

PoE Camera Assembly

x1

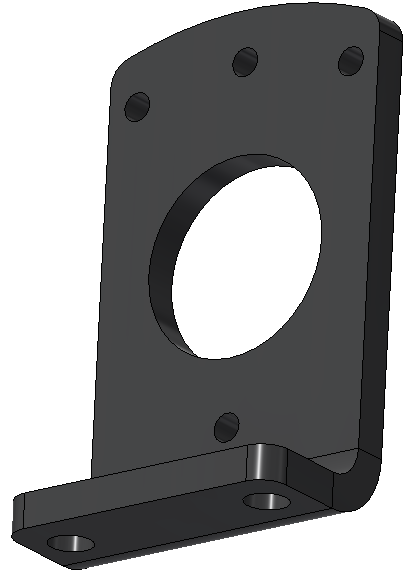

Top Mounting Bracket (optional)

Et bilde som inneholder skrue, metallvarer, Skruer og muttere til hjemmet, festeanordning??Automatisk generert beskrivelse

X1

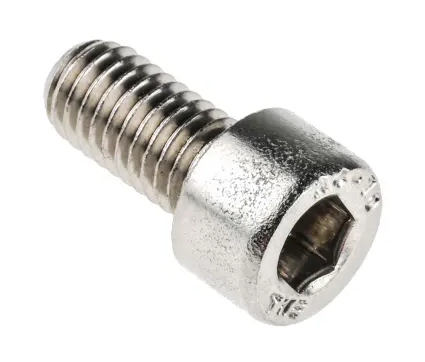

M6 HEX socket head bolts (DIN912) 30mm

X1

M6 HEX socket head bolts (DIN912) 25mm

X2 (optional)

M6 HEX socket head bolts (DIN912) 20 mm

Shop Zinc Plated Flat Washer Size 12 mm ...

X2 (optional)

M8 Washer (DIN125)

X2 (optional)

M6 Washer (DIN125)

DIN 985, acél, I10I horganyzott Online vásárlás

X2 (optional)

M6 Nylon Nut (DIN985)

Et bilde som inneholder verktøy, skrunøkkel??Automatisk generert beskrivelse

x1

HEX key size 5


  1. A

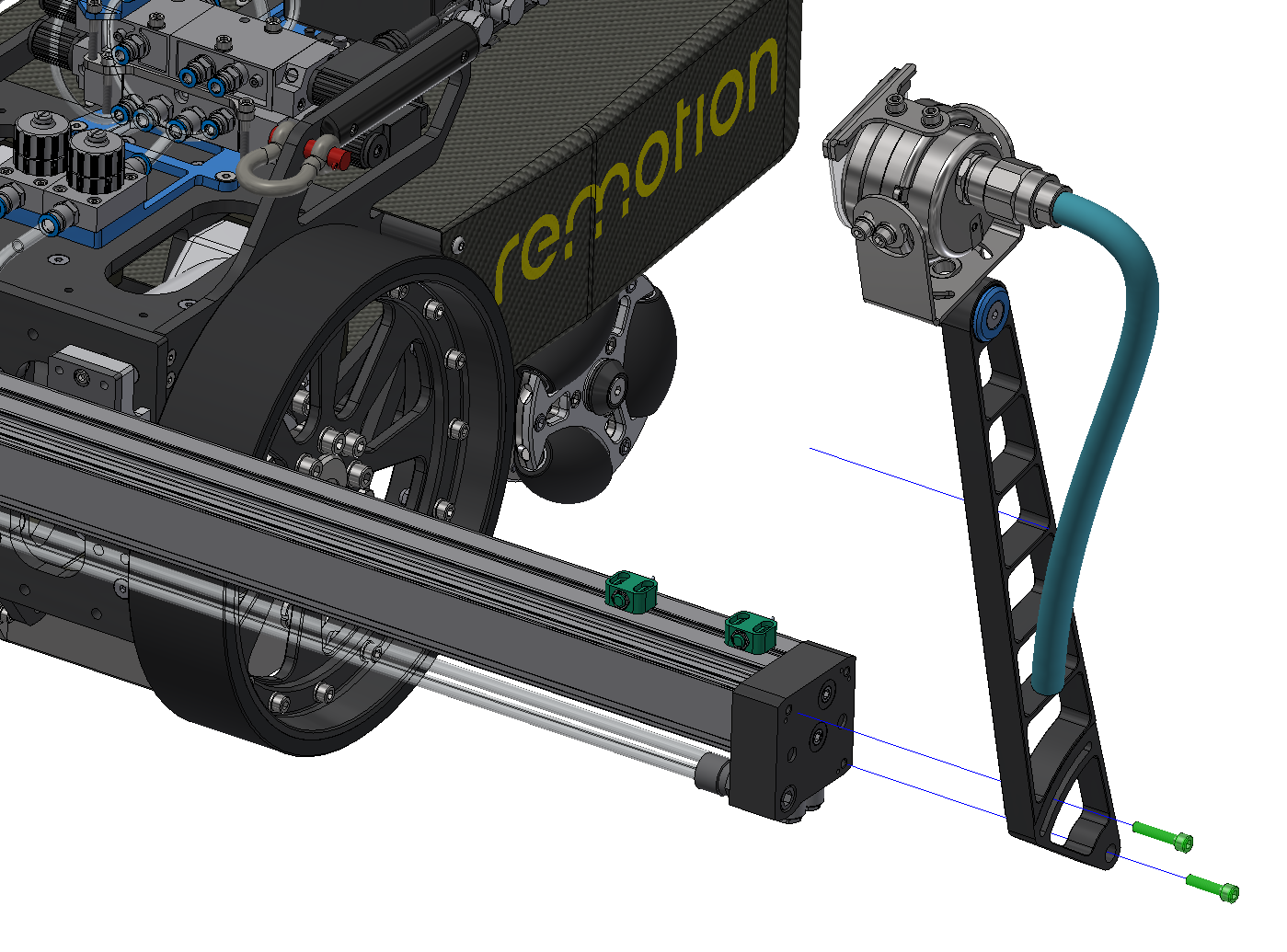

Mounting on linear tool.

Install the camera mast onto the endpiece of the linear tool by 1 of M6x25 and 1 of M6x30 screws.

6.  B/1

Mounting on top of the robot (Optional).

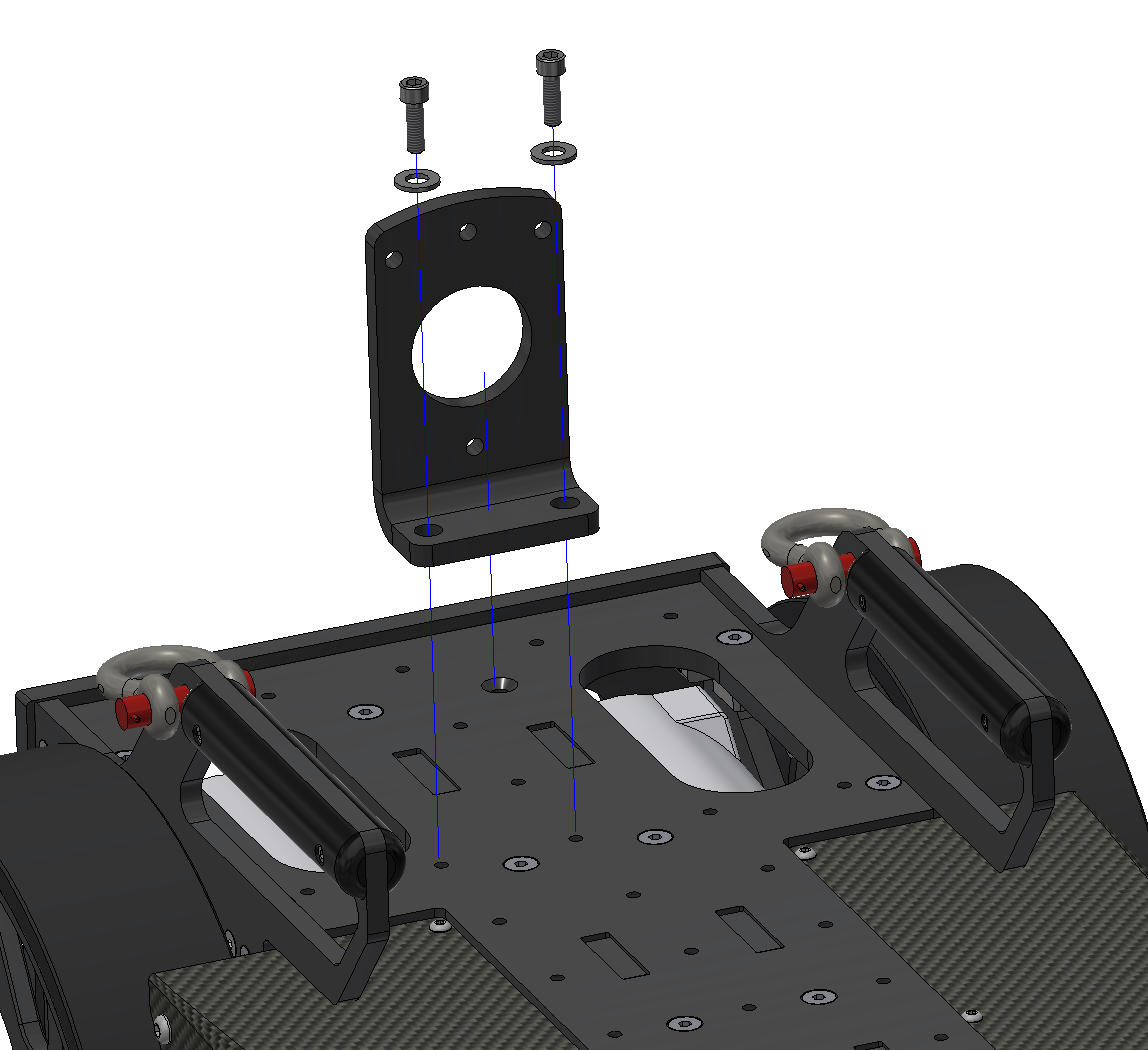

Install the top mounting bracket on the top of the robot. Choose a position as required. Use 2 of M6x25 screws with the 2 of M8 washers.

6.  B/2

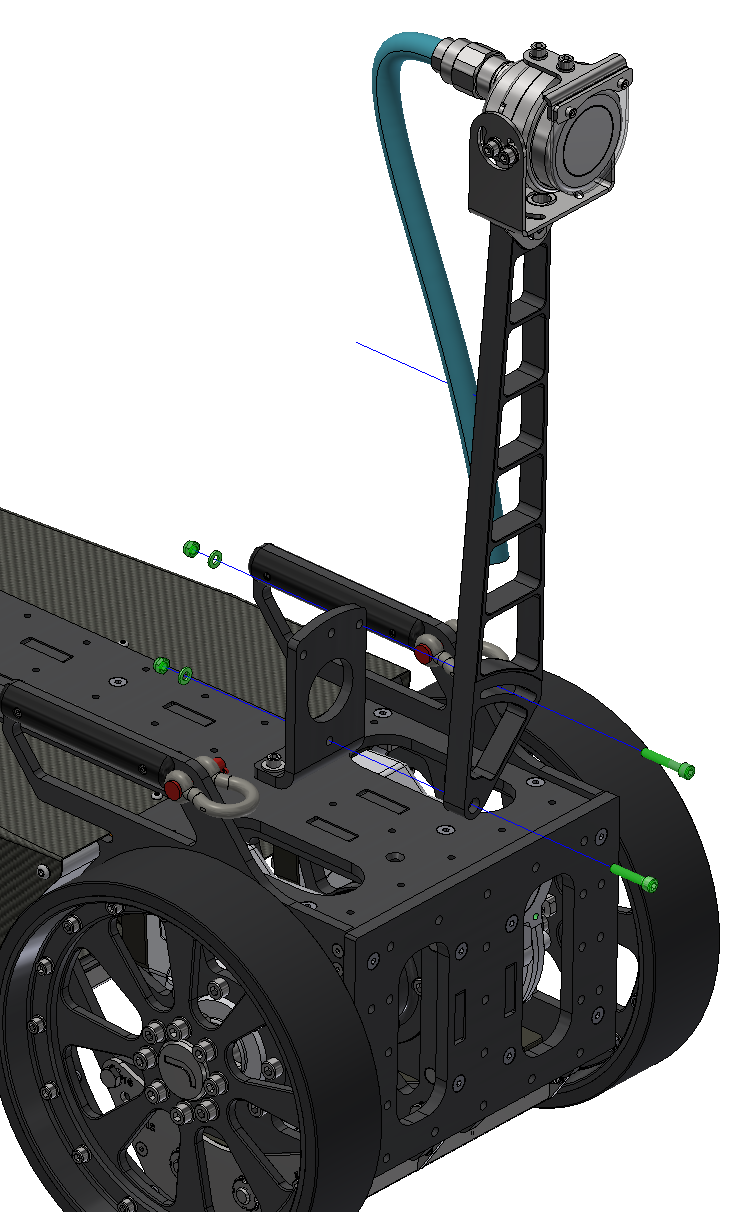

Install the camera mast onto the bracket by 1 of M6x30 and 1 of M6x35 screws, M6 washers and nylon nuts .

7.

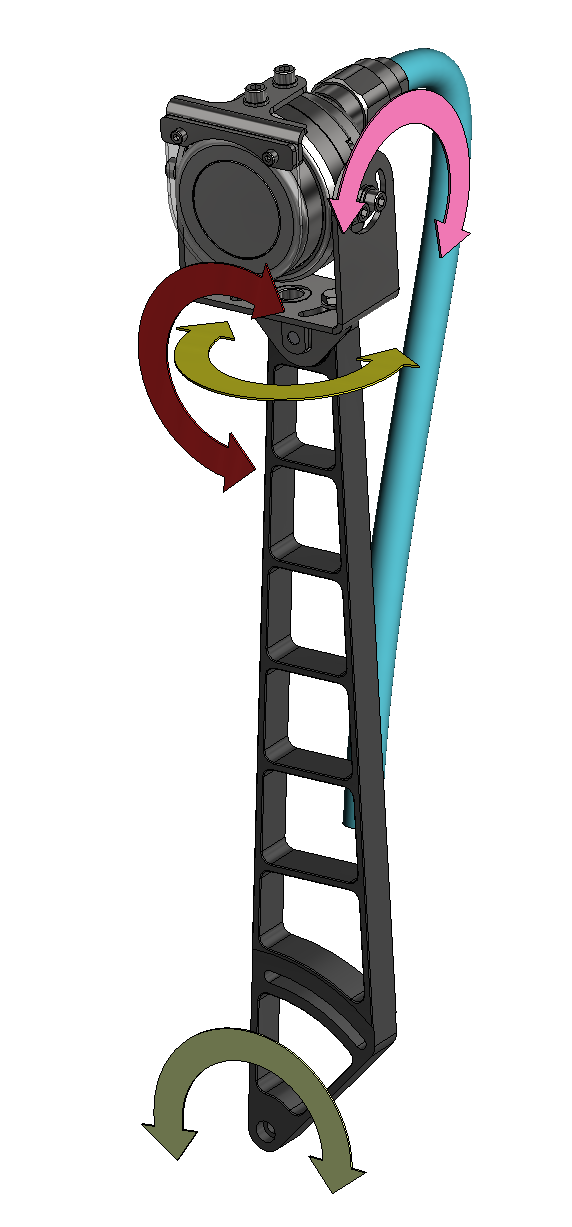

Adjust the mast and the camera angle as required.
