Description

Prepare the following tools and parts:

x1

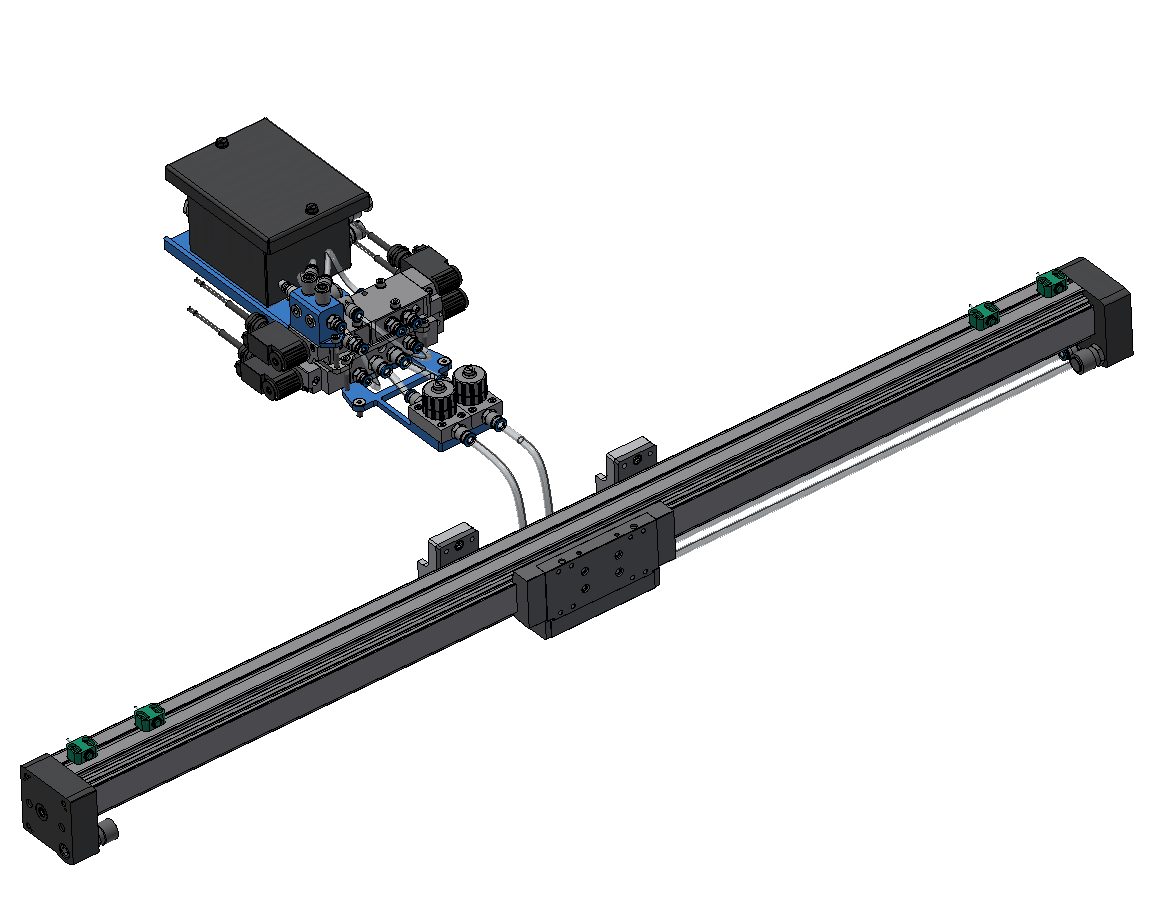

Linear Tool

Et bilde som inneholder skrue, metallvarer, Skruer og muttere til hjemmet, festeanordning??Automatisk generert beskrivelse

X8

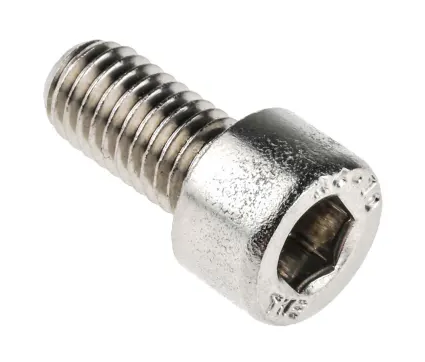

M8 HEX socket head bolts (DIN912) 25mm

X4

M5 HEX socket head bolts (DIN912) 6mm

Countersunk screw material:Stainless steel A2 - DIN 7991

X6

M6 Countersank Hex socket screw (DIN7991) 16mm

Et bilde som inneholder verktøy, skrunøkkel??Automatisk generert beskrivelse

x1

HEX key size 6 & 4

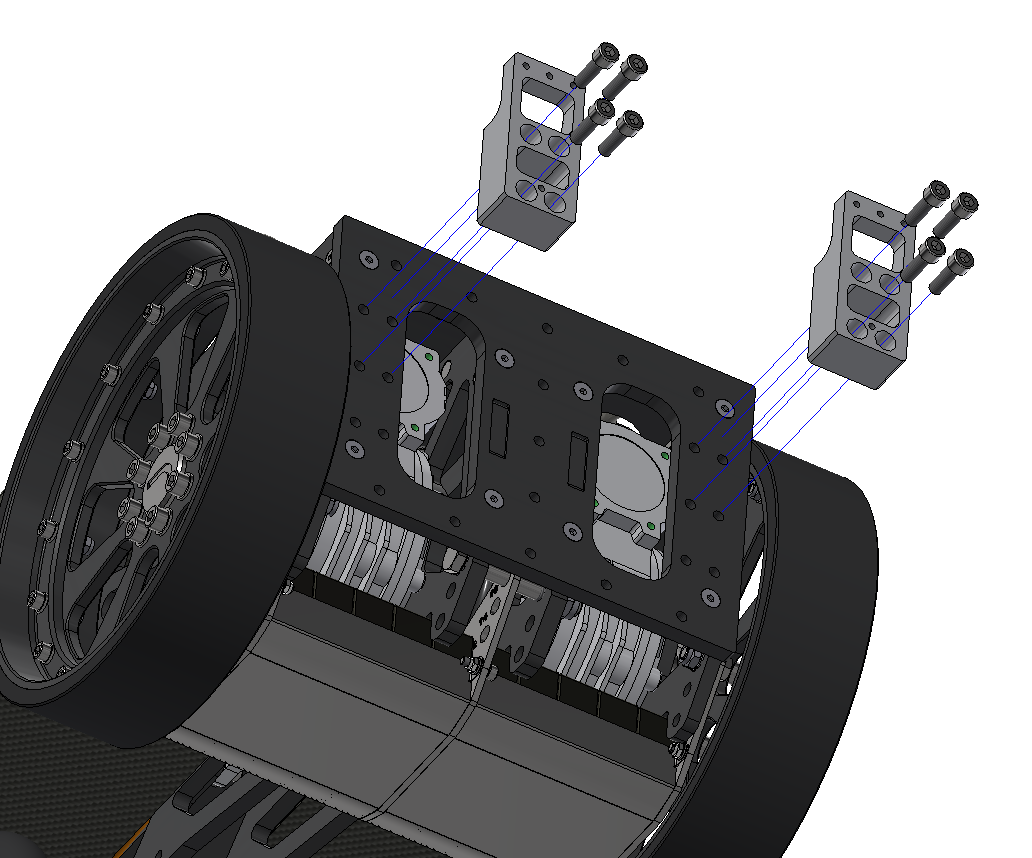

Install the two rodless cylinder brackets with the 8 M8 hex socket screws

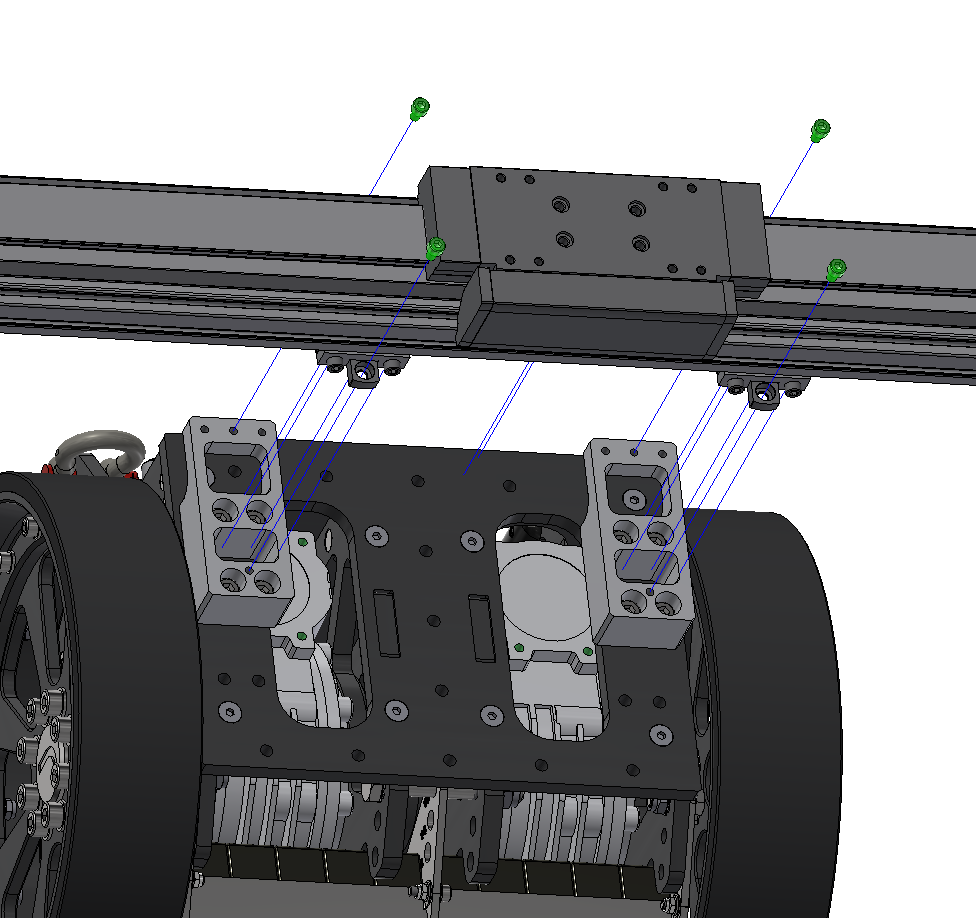

Install the rodless cylinder onto the brackets by the M5 Hex socket screws.

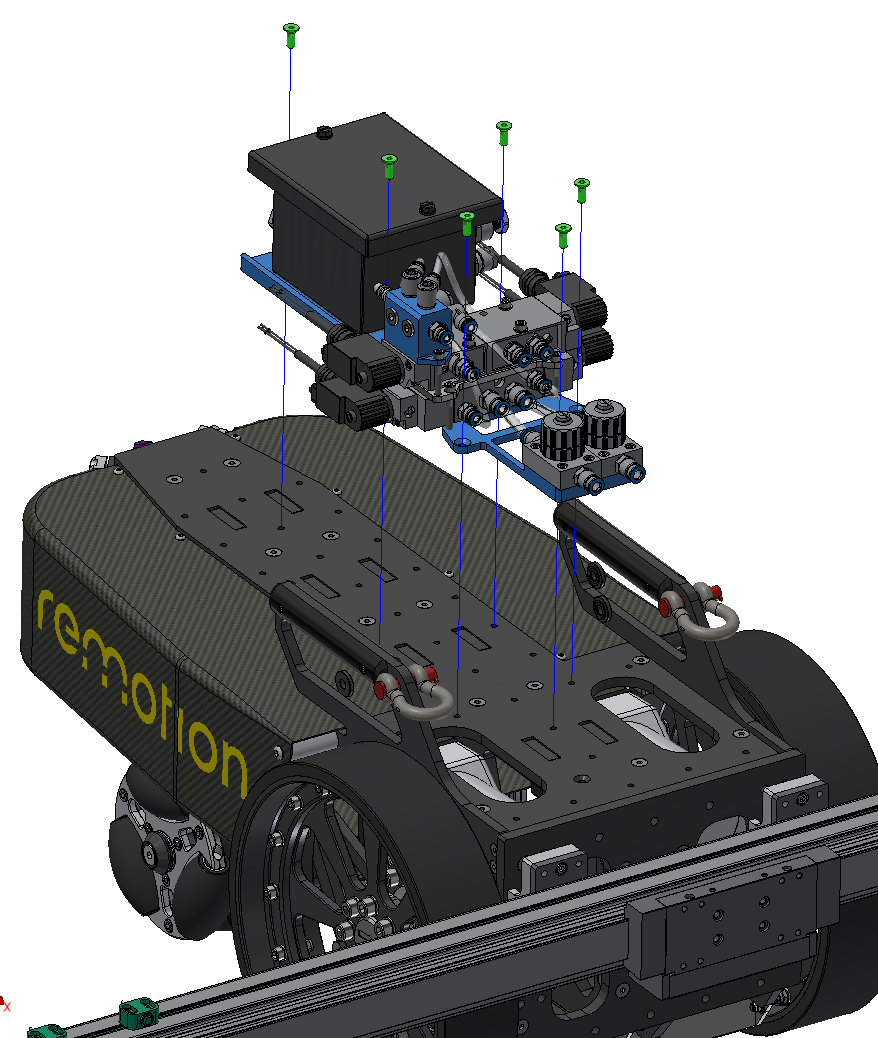

Place the pneumatic / electric control pack on the top of the robot and secure it by the 6 M6 Ctsk. Hex socket screws.

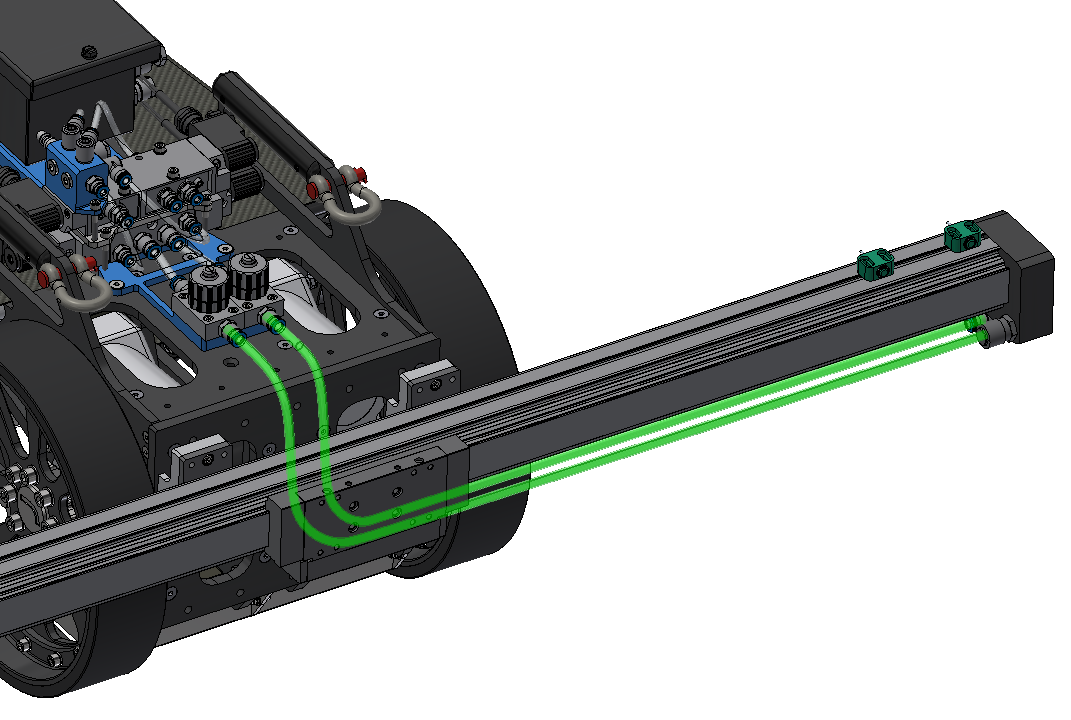

Connect the One way control valves with the rodless cylinder pneumatic ports.

Connect the proximity sensors to the electrical control box.

Connect the Linear Tool Cables (121509) to the electrical control box.

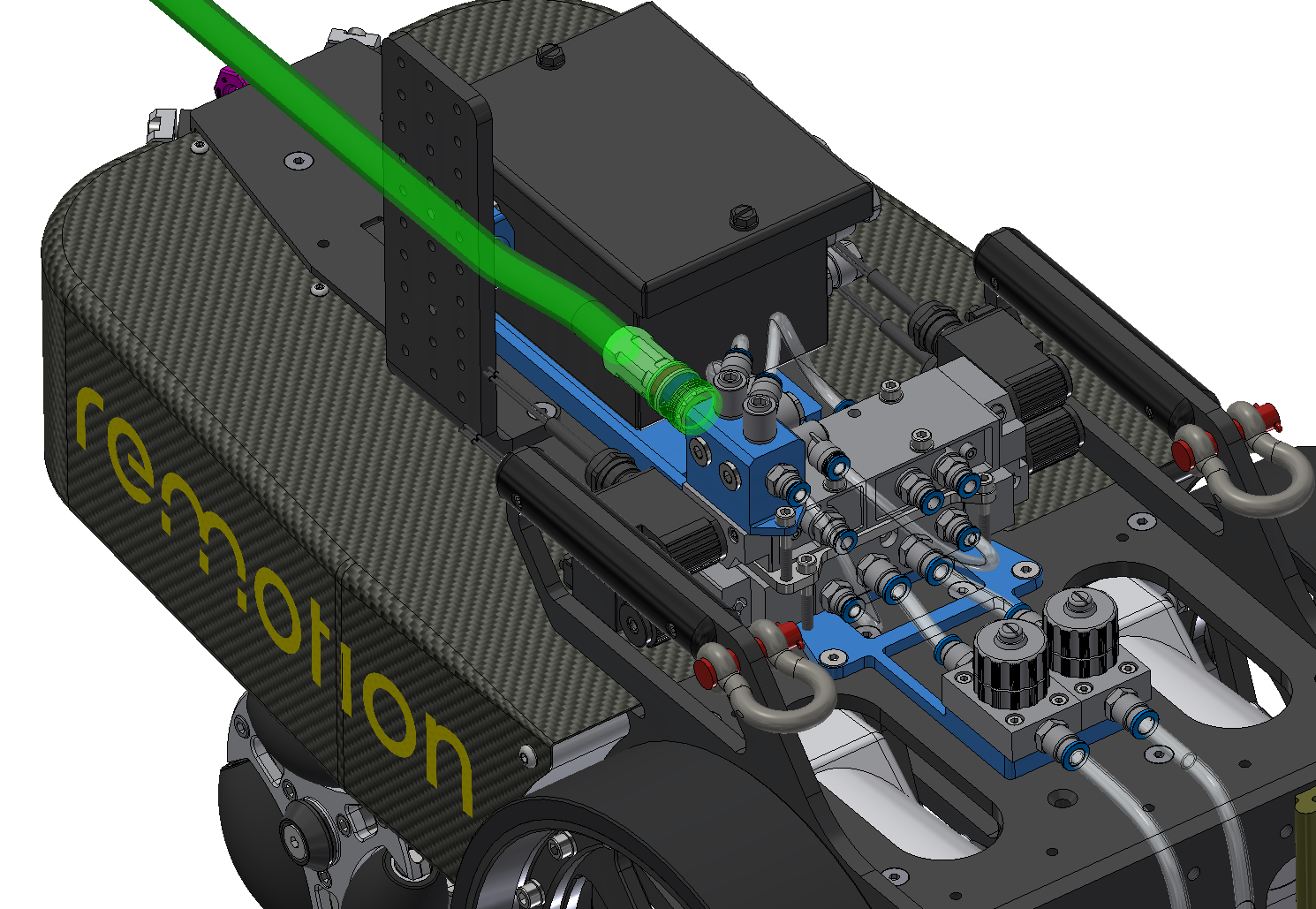

Connect the pressurized air supply to the pneumatic manifold.
