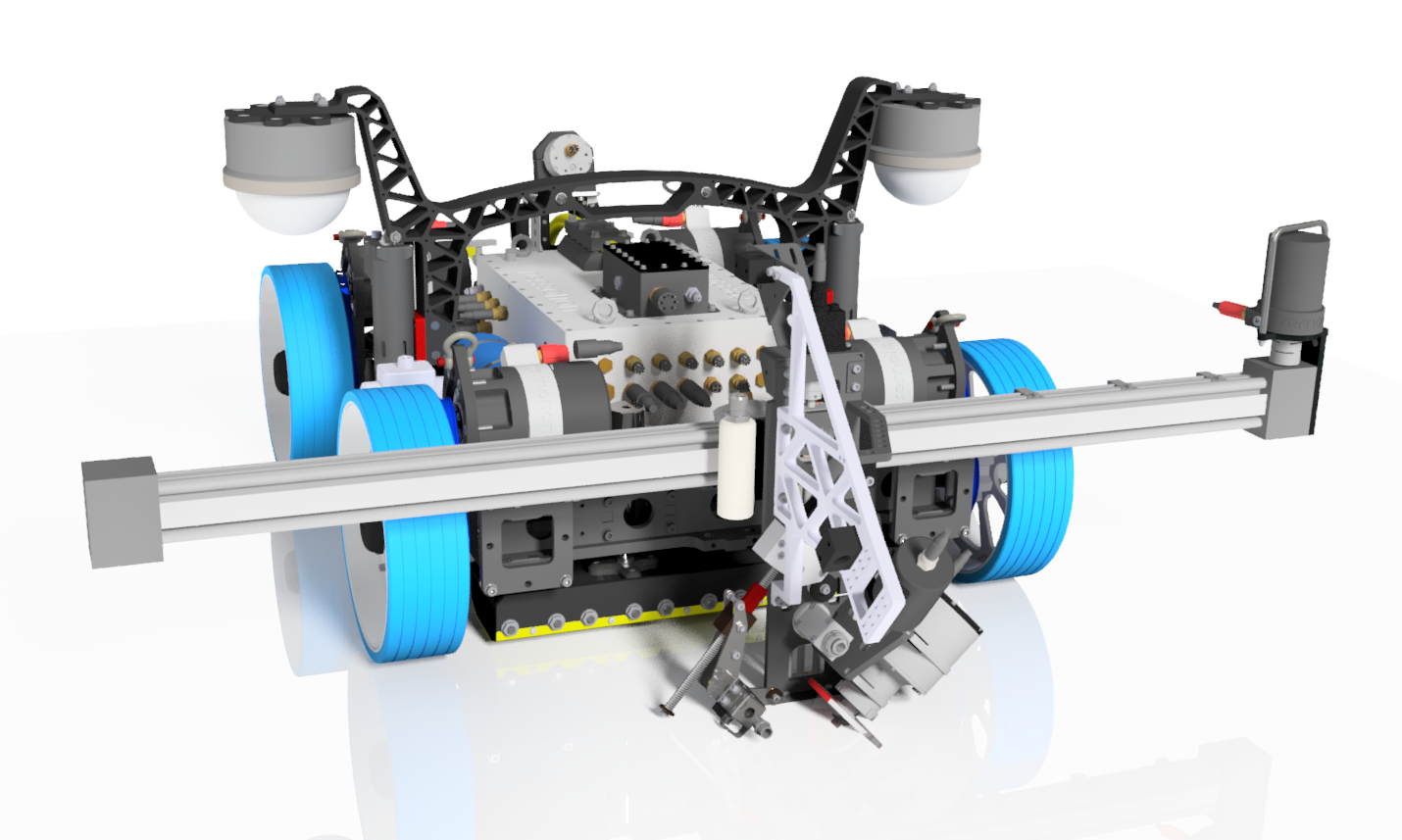

Achilles Robot System - Full Technical Specifications
|
Achilles 01 - RM1629 |
||
|
|
||
|
Type |
Robot System Tool Carrier |
|
|
Manufacturer |
Remotion |
|
|
Manufacturer reference |
RM-AC-001 |
|
|
Remotion reference (RM) |
|
|
|
Weight, dry |
250 kg |
|
|
Dimensions (L x W x H) |
977mm x 1110mm x 700mm |
|
|
Documentation |
|
|
|
IP/Subsea |
Subsea |
|
|
Depth Rating |
20m |
|
|
Magnetic holding force |
1200 kg |
|
|
Theoretical max payload |
100 kg |
|
|
Maximum driving speed |
1M/s |
|
|
Electrical supply voltage (V) |
400VAC |
|
|
Electrical supply fuse (A) |
63A |
|
|
Electrical frequence (HZ) |
50-60 |
|
|
Electrical robot voltage (V) |
400VDC |
|
|
Available tooling power |
24VDC, 25A |
|
|
Tether Length |
150m |
|
|
ATEX topside |
Zone 01 |
|
|
ATEX Robot |
N/A |
|
|
Cameras |
5x IP cameras |
|
|
EQD Technology |
Emergency release function |
|
|
Tooling communication interface |
Serial RS232/485, Ethernet |
|
|
Hydro blasting |
|
|
|
Habitat |
X |
|
|
Grinder |
X |
|
|
Plug tool |
X |
|
|
Temp. range storage |
-10c - 40c |
|
|
Temp. range operation |
0c - 50c |
|
