Drive Unit Dismounting

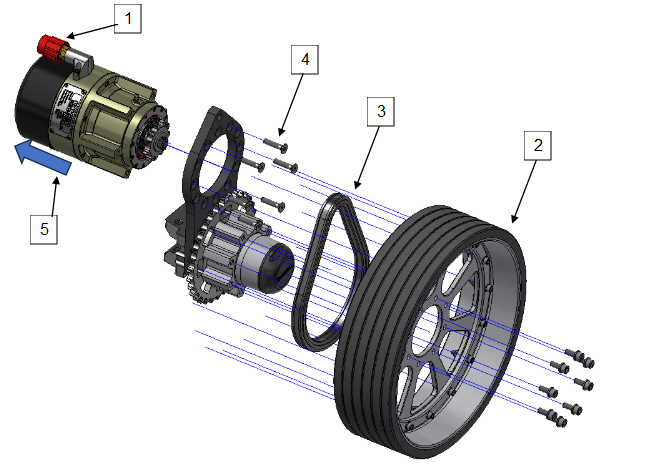

For some parts of the maintenance procedure it might be necessary to remove the drive unit from the robot. To access the mounting bolts follow the instructions:
- Unplug the motor cable
- Remove the wheel from the wheel hub.
- Remove the drive chain by opening the quick link installed.
- Remove the motor mounting bolts.
- Pull the Drive Unit backwards to remove it from the bracket.
